TEY Intelligent PID Temperature Controller High Light LED Display RS485 IEC61010-1

TEY Intelligent PID Temperature Controller High Light LED Display RS485 IEC61010-1
TEY Intelligent PID Temperature Controller High Light LED Display RS485 IEC61010-1

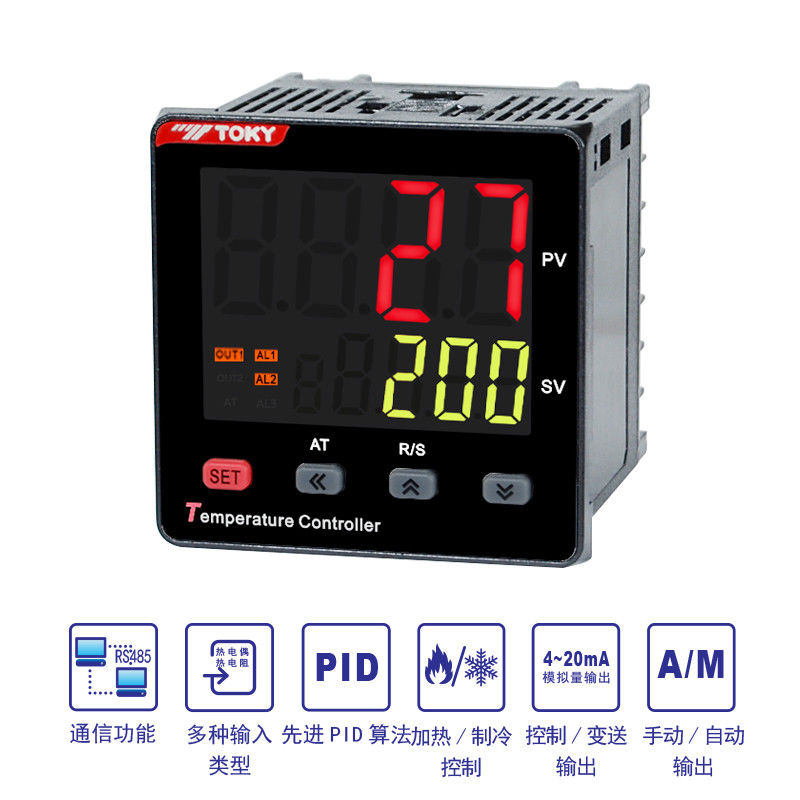

Large Image :  TEY Intelligent PID Temperature Controller High Light LED Display RS485 IEC61010-1

Product Details:
Place of Origin: China
Brand Name: Toky
Certification: CE
Model Number: TEY series
Payment & Shipping Terms:
Minimum Order Quantity: 5sets
Packaging Details: Carton
Delivery Time: 15~35days
Payment Terms: T/T

TEY Intelligent PID Temperature Controller High Light LED Display RS485 IEC61010-1

Description
Usage: Industrial Machinery, Measurement Instrument Accuracy: 0.5%FS
Working Voltage: 100~240V AC/DC Power Consumption: <10W
Working Environment: 0~50℃ <85%RH Relay Output: 3A/250V AC
Communication: RS485 Safety Standard: IEC61010-1
High Light:

RS485 Intelligent Temperature Controller

,

LED Display Temperature Controlle RS485

,

IEC61010-1 Temperature Controller

TEY series intelligent digital PID temperature controller High light LED display RS485 3A/250V AC 0.5%FS

1. Features and advantages of TEY digital temperature controller:

a). High light LED  display.

b). Multi input signal and multi models for option.

c). Optional control output:RELAY/SSR/analog.

d). Have measurement display, control output, alarm output, analog output, RS485 communication function.

e). Multi PID algorithms for option, with auto tune function.

f). Widely used in industrial machinery, machine tools, general measuring instruments and equipment.

g). Surge immunity standard:IEC/EN61000-4-5

h). Pulse trainanti-interference standard:IEC/EN61000-4-4

i). ESD:IEC/EN61000-4-2

j). Safety Standard:IEC61010-1


2. Model specification and order information:

TEY Intelligent PID Temperature Controller High Light LED Display RS485 IEC61010-1 0


TEY Intelligent PID Temperature Controller High Light LED Display RS485 IEC61010-1 1



3. Technical parameter:

Electrical parameter:

Sample rate 2 times per second
Relay capacity AC 250V/3A Life of rated load>100,000 times
Power supply AC/DC 100~240V(85-265V)
Power consumption <10VA
Environment Indoor use only, temperature: 0~50℃ no condensation,
humidity<85%RH, altitude<2000m
Storage
enenvironment
-10~60℃, no condensation
SSR output DC 24V pulse voltage, load<30mA
Current output DC 4~20mA load<500Ω, temperature drift 250PPM
Communication port RS485 port Modbus-RTU protocol, max input 30 units
Insulation impedance Input, output, power VS meter cover>20MΩ
ESD IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B
Pulse train
anti-interference
IEC/EN61000-4-4 ±2KV perf.Criteria B
Surge immunity IEC/EN61000-4-5 ±2KV perf.Criteria B
Voltage drop & short
interruption immunity
IEC/EN61000-4-29 0%~70% perf.Criteria B
Isolation voltage Signal input, output, power: 1500VAC 1min,
<60V low voltage circuit: DC500V,1min
Total weight About 400g
Cover material The shell and panel frame PC/ABS (Flame Class UL94V-0)
Panel material PC
Power failure memory 10 years, times of writing: 1 million times
Safety Standard IEC61010-1 Overvoltage category Ⅱ,pollution level 2,
levelⅡ(Enhanced insulation)


Measuring signal specifications:

TEY Intelligent PID Temperature Controller High Light LED Display RS485 IEC61010-1 2

4. Dimention:

TEY Intelligent PID Temperature Controller High Light LED Display RS485 IEC61010-1 3

5. Connections:
TEY Intelligent PID Temperature Controller High Light LED Display RS485 IEC61010-1 4
