Product Details:
|
| Usage: | Industrial | Accuracy: | 0.5%FS |
|---|---|---|---|
| Working Voltage: | 100～240V AC/DC | Power Consumption: | ≤6W |
| Working Environment: | 0～50℃ 45～80%RH | Relay Output: | 3A/250V AC |
| High Light: | AI208 Intelligent Temperature Controller,Intelligent Temperature Controller 0.5%FS,digital temperature controller 250VAC |
||

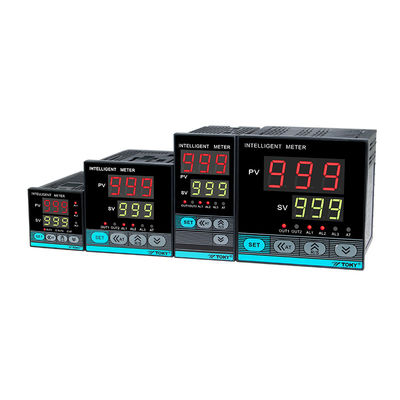

AI208 Series Intelligent PID Temperature Controller 0.3%FS LED Display Output Alarm
1. Features and advantages of AI208 digital temperature controller:
a). Easy operation,economic model.
b). 0.3%FS high-accuracy signal measurement.
c). 2 degree PID arithmetic with a good control effect.
d). Calculate the best control state automatically.
e). 1 loop alarm function with free setting.
2. Model specification:
3. Technical parameter:
| Input type | K,J,E,T,PT100,Cu100,Cu50 |
| Measurement accuracy | 0.5%FS |
| Resolution | 1℃ |
| Temperature excursion | ≤0.01FS/℃(Typical value 50PPM/℃) |
| Control mode | PID control,optional ON/OFF control(Recommend PID arithmetic control with AT auto-tuning function. |
| Output type | Relay output:capacity 3A/250VAC |
| SSR output:24V impulse voltage, load 30mA | |
| Alarm output | Relay output:capacity 1A/250VAC |
| Voltage | 100～240V AC/DC |
| Total current | <20mA(220VAC) |
| Working environment | 0～50℃ 45～85%RH |
| Storage environment | -10～60℃ 25～85%RH |
| ESD | level 3,Contact discharge±6000V, air discharge±8000V |
| Pulse train anti-interference | level 4,±4000Vp-p |
| Lightning surge | level 3,line to line ±2000V |
| Frequency drop | level 3 |
4. Dimention:
5. Connections:
