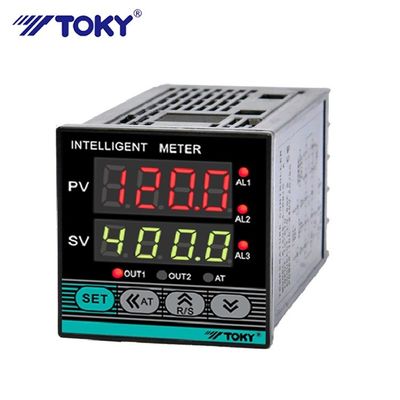

TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS

TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS
TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS
TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS

Large Image :  TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS

Product Details:
Place of Origin: China
Brand Name: Toky
Certification: CE
Model Number: TE series
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Carton
Delivery Time: 15~30days
Payment Terms: T/T

TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS

Description
Usage: Industrial Machinery, Measurement Instrument Accuracy: 0.5%FS
Working Voltage: 100~240V AC/DC Power Consumption: ≤6W
Working Environment: 0~50℃ 45~80%RH Relay Output: 3A/250V AC
Communication: RS485
High Light:

0.5%FS intelligent temperature controller

,

TE intelligent temperature controller

,

smart temperature controller 4 digits display

TE series intelligent PID temperature controller with 4 digits LED display, high accuracy of 0.5%FS

1. Features and advantages of TE digital temperature controller:
a). Easy operation,economic model.
b). TC/RTD universal input.
c). Intelligent PID control and auto-tuning function
d). Optional control output,RELAY/SSR/SCR
e). Optional kinds of series dimension.
f). The new version update 4 digits display to improve resolution.
g). Mature PID algorithm and hardware design, high reliability.


2. Model specification:
TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS 0

3. Technical parameter:

Input type K,J,E,T,S,PT100,Cu100,Cu50
Measurement accuracy 0.5%FS
Resolution RTD input:0.1℃;TC input:1℃
Temperature excursion ≤0.01FS/℃(Typical value 50PPM/℃)
Control mode PID control,optional ON/OFF control(Recommend PID arithmetic control with AT auto-tuning function.)
Output type Relay output:capacity 3A/250VAC
SSR output: switch power 24V;linear power 12V,load 30mA
Alarm output Relay output:capacity 1A/250VAC
Voltage TE4:on/off power,100~240V AC/DC;TE6/7/8/9:220V
Total current <20mA(220VAC)
Working environment 0~50℃ 45~85%RH
Storage environment -10~60℃ 25~85%RH
ESD level 3,Contact discharge±6000V, air discharge±8000V
Pulse train anti-interference level 4,±4000Vp-p
Lightning surge level 3,line to line ±2000V
Frequency drop level 3


TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS 1

4. Dimention:
TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS 2

5. Connections:
TE Intelligent PID Temperature Controller with 4 digits LED display 0.5%FS 3
