Product Details:
|
Circuit Resistance: | 50mΩ Or Less | Product Name: | Automatic Reset Thermostat |
---|---|---|---|
Insulation Resistance: | 100MΩ Or More(DC 500V) | Dielectric Strength: | AC 1,450V For 1 Min. |
Case Material: | PPS(P) | Terminal Orientation: | 0°/30°/45°/60°/90° |
Differential: | 8℃ Or More | Type: | Single Pole - Single Throw |
High Light: | ksd301 thermal switch,ksd301 temperature switch |

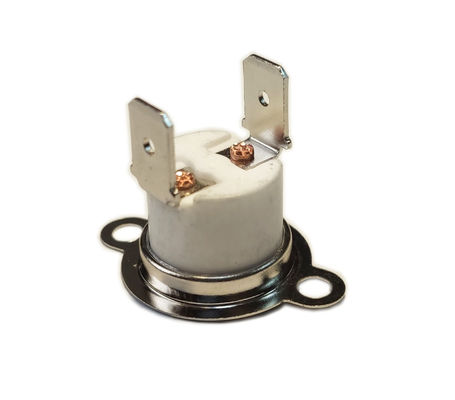

T24-SR9-CB Automatic Ksd301 Thermal Switch Circuit Resistance 50mΩ Or Less
The most versatile Automatic Reset KSD301 thermostats.
A wide range of temperature,low temperature till high temperature,can be set according to customer requirements.
Cap/Case material,Bracket type/Terminal Orientation/Terminal Size could be customized based on actual demand. See the bottom for details.
Type: Single pole - single throw
T24 series thermoistat Height: 12.4mm(T23 series is 9.6mm)
Operating temp:
UL/CUL: 0℃~250℃
TUV: 0℃~220℃
CQC: 50℃~250℃
Differential: 8℃ or more(depend on customer's demand.)
CAP/Bracket Material: Aluminum/Stainless steel/Copper
Terminal Orientation: 0°/30°/45°/60°/90°
Terminal Size:4.75mm(0.187inch)/6.35mm(0.25inch)
Case Material: Phenolic(T)/PPS(P)/Ceramic(C)
Electrical Rating:
16A/250V AC Resistive load
15A/125V AC Resistive load
10A/250V AC Resistive load
Temp Tolerance: ±3℃ or more, Standard: ±3℃ ~ ±12℃(depend on customer required operating Temp)
Endurance: 100,000 cycles or more
Circuit Resistance: 50mΩ or less
Insulation Resistance: 100MΩ or more(DC 500V)
Dielectric Strength: AC 1,450V for 1 min.
Current bracket/Terminal types and case material options are as below. We would like to cooperate customer for new design.
