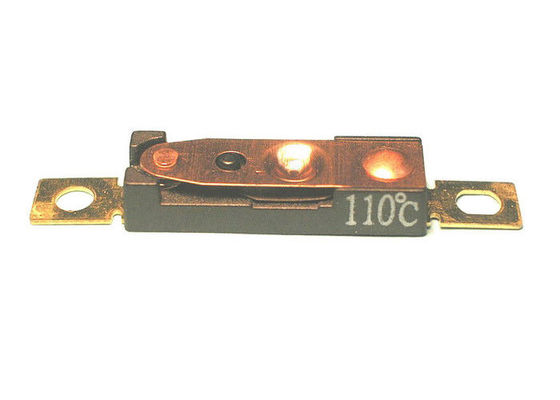

Resistive Load 9A 250V AC Automatic Reset Thermostat Reset Temp 15K~50K T26-110-A

Resistive Load 9A 250V AC Automatic Reset Thermostat Reset Temp 15K~50K T26-110-A
Resistive Load 9A 250V AC Automatic Reset Thermostat Reset Temp 15K~50K T26-110-A

Large Image :  Resistive Load 9A 250V AC Automatic Reset Thermostat Reset Temp 15K~50K T26-110-A

Product Details:
Place of Origin: China
Brand Name: LC
Certification: UL, CUL, VDE, ENEC
Model Number: T26-110-A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 35 days
Payment Terms: T/T
Supply Ability: 10,000pcs per day
Contact Now

Resistive Load 9A 250V AC Automatic Reset Thermostat Reset Temp 15K~50K T26-110-A

Description
Electrical Rating: 9A 250V AC(Resistive Load) Contact Resistance: <50mΩ
Operating Temp: 70℃~150℃ Reset Temp: 15K~50K(15℃~50℃)
Over Shoot Temp.Limit: 200℃ 30 SEC. Temp.Tolerance: A: 5K/B: 7.5K
Operating Life: 100000 Cycles(9A 250V AC UL) Weight: 0.95g
Highlight:

ksd301 thermal switch

,

ksd301 temperature switch

Resistive Load 9A 250V AC Automatic Reset Thermostat Reset Temp 15K~50K T26-110-A





Contact Type: Resistive Load 9A 250V AC Automatic Reset Thermostat Reset Temp 15K~50K T26-110-A 0(Normally Closed)



Electrical Rating: 9A 250V AC(Resistive Load)



Contact Resistance:<50mΩ



Operating Temp:70℃~150℃



Reset Temp:15K~50K(15℃~50℃)



Ambient Temp.(Continuous Heating): 150℃ max



Over Shoot Temp.Limit: 200℃ 30 SEC.



Temp.Tolerance: A: 5K/B: 7.5K



Operating Life: 100000 Cycles(9A 250V AC UL)



Weight: 0.95g

Tag:

ksd301 thermal switch,

ksd301 temperature switch,

ksd301 thermostat
