Product Details:
|
| Usage: | Industrial | Accuracy: | 0.5%FS |
|---|---|---|---|
| Working Voltage: | 100～240V AC/DC | Power Consumption: | ≤6W |
| Working Environment: | 0～50℃ <85%RH | Relay Output: | 3A/250V AC |
| High Light: | DC240V Intelligent Temperature Controller,AI208X Intelligent Temperature Controller |
||

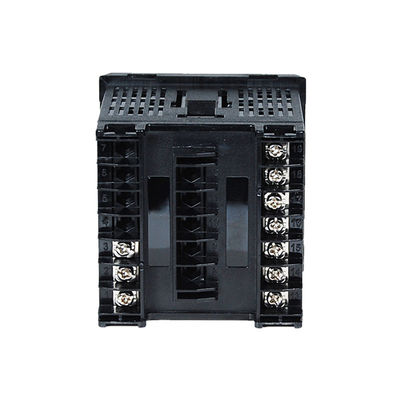

AI208X PID Temperature Controller 0.5%FS LED Display one loop output Alarm Heating/cooling controll AC/DC 100～240V
1. Features and advantages of AI208X digital temperature controller:
a). Easy operation,economy model.
b). Intelligent fuzzy PID algorithm with auto-tuning function.
c). One-press to enter the auto-tuning state, calculate the best controlling state automatically.
d). 1 loop free-setting alarm function.
e). Heating control , compressor cooling control, heating-cooling control for extruder screw.
f) Use integrated digital tube.
2. Model specification:
3. Technical specification:
Parameter:
| Sample rate | 2 times per second |
| Relay capacity | AC 250V /3A Life of rated load>100,000 times |
| Power supply | AC/DC 100 ～ 240V(85-265V) |
| Power consumption | < 6VA |
| Environment | Indoor use only, temperature: 0~50℃ no condensation,humidity＜85%RH, altitude<2000m |
| Storage environment | -10 ～ 60℃, no condensation |
| SSR output | DC 24V pulse voltage, load<30mA |
| Insulation impedance | Input, output, power VS meter cover ＞20MΩ |
| ESD | IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B |
| Pulse traip anti-interference | IEC/EN61000-4-4 ±2KV perf.Criteria B |
| Surge immunity | IEC/EN61000-4-5 ±2KV perf.Criteria B |
| Voltage drop & short interruption immunity | IEC/EN61000-4-29 0% ～ 70% perf.Criteria B |
| Isolation voltage | Signal input, output, power: 1500VAC 1min, <60V low voltage circuit: DC500V,1min |
| Total weight | About 400g |
| Cover material | The shell and panel frame PC/ABS (Flame Class UL94V-0) |
| Panel material | PET(F150/F200) |
| Power failure memory | 10 years, times of writing: 1 million times |
| Panel Protection level | IP65(IEC60529) |
| Safety Standard | IEC61010-1 Overvoltage category Ⅱ,pollution level 2,levelⅡ(Enhanced insulation) |
Specification of measuring signal table:
4. Dimension:
5. Connections:
