Product Details:
|
Electrical Rating: | 10A/16A 125V, 10A/16A 250V AC | Life Endurance: | >30,000 Cycles |
---|---|---|---|
Function: | ON-OFF | Contract Resistance: | <20mΩ |
Ambient Temperature: | T85/T105 | Housing Material: | PA66/PC |
Contacts Material: | Silver Alloy | Terminal Material: | Copper Silver Plated |
Highlight: | electrical push button,push power switch |

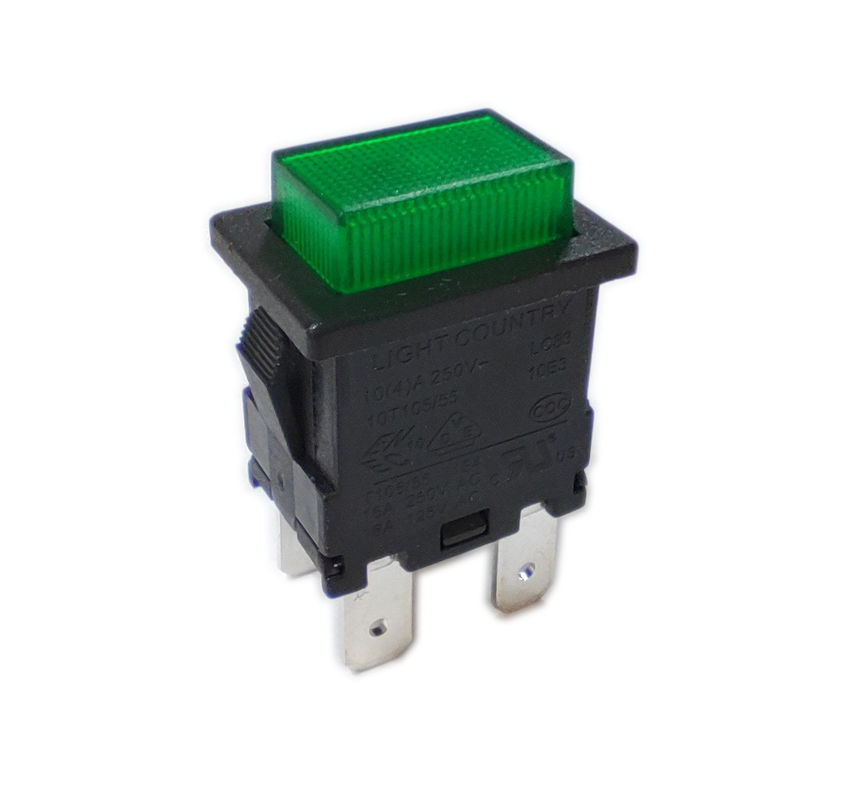

LC83-7 Electrical Push Button Switch, 21*15mm, ON-OFF, Green Illuminated Button
Light Country was founded in 1985 in Taiwan.
We dedicate on Electrical Push button Switch, Rocker switch and Thermal switches.
These parts are widely used in Kitchen appliance, electrical and industrial facilities, medical devices, etc.
To provide customer best service, we’re with integration of design, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive service, effective improvements.
1. LC83 Series Push Button Switch Specification.
Manufacturer | Light Country(Changshu)Co.,Ltd |
Model | LC83 |
Satefy Approval | UL, CUL, VDE, ENEC, CQC |
Electrical rating | 10A/16A 125V, 10A/16A 250V AC |
Mechanical life endurance | >30,000 cycles |
Contract resistance | <20mΩ |
Insulation resistance | >1000MΩ |
Ambient temperature | T85/T105 |
Fire rating | UL 94V-2. UL 94V-0. Glow-wire, needle flame test. |
Material of housing | PA66/PC |
Housing Color Options | Black, White |
Button Color Options | Green, Black, White, Red, Yellow......Contact with us for more. |
Material of contacts | Silver alloy |
Material of terminal | Copper silver plated |
Solder ability of terminal | Max 350℃ 3S, do not apply pressure to the terminal when welding by hand. |
2. LC83 Push Button Switch Function Options.
Item No |
Poles& Throws |
Rocker Position | ||
Left | Center | Right | ||
LC8301 | SPST | ON | None | OFF |
LC8302 | SPST | (ON) | None | OFF |
LC8303 |
SPST(with lamp) |
ON | None | OFF |
LC8304 |
SPST(with lamp) |
(ON) | None | OFF |
LC8305 | DPST | ON | None | OFF |
LC8306 | DPST | (ON) | None | OFF |
LC8307 |
DPST(with lamp) |
ON | None | OFF |
LC8308 |
DPST(with lamp) |
(ON) | None | OFF |
3. LC83 Push Button Switch Dimension.
4. LC83 Push Button Switch Lamp Circuit.
