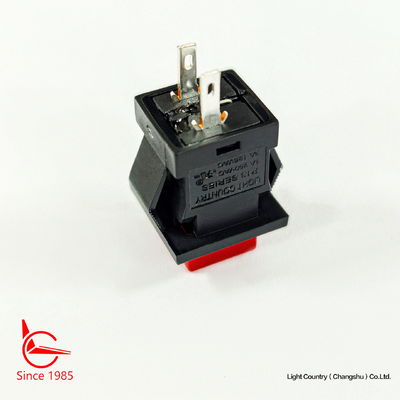

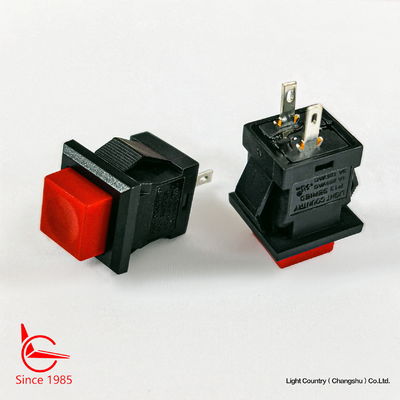

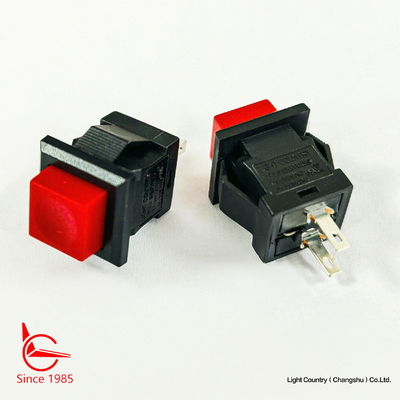

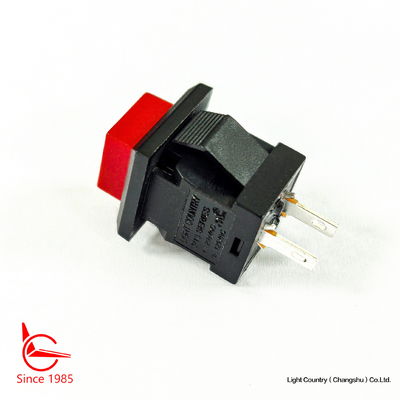

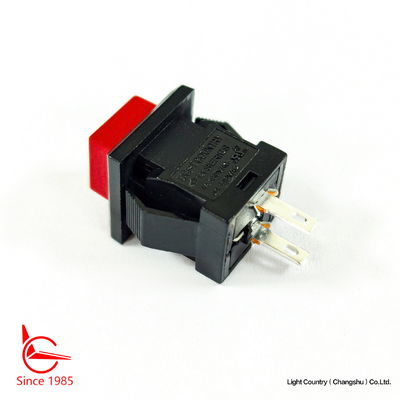

Small Size Red Push Button Electrical Switch, 14mm*14mm, ON OFF, UL VDE ENEC

Small Size Red Push Button Electrical Switch, 14mm*14mm, ON OFF, UL VDE ENEC

P13 Series Specification

Safely approval: UL, CUL, VDE, ENEC

Electrical rating: 3A 125V AC, 1A 250V AC

Mechanical life endurance: 30,000 cycles

Electrical life endurance: 10,000 cycles

Contract resistance: <20mΩ

Insulation resistance: ＞1000MΩ

Ambient temperature: T85/T105

Fire rating: UL 94V-2. UL 94V-0. Glow-wire, needle flame test.

Material of housing: PA66

Material of contacts: Silver alloy

Material of terminal: Copper silver plated

Solder ability of terminal: Max 350℃ 3S, do not apply pressure to the terminal when welding by hand.

Part number cording rule: Choices of Switch function, Housing color, Actuator color, Marking, Terminal type, Lamp voltage can be found here.

Option of switch function:

Dimension.
