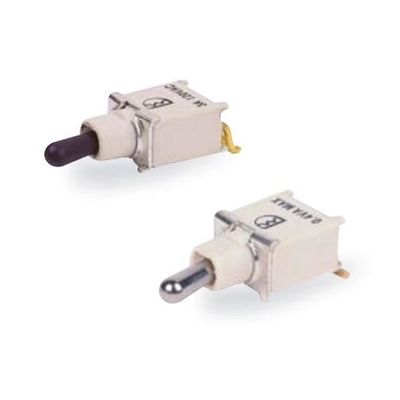

Durable 3 Position Toggle Switch , Small Toggle Switch 2B Series Brass Tin Plated

Durable 3 Position Toggle Switch , Small Toggle Switch 2B Series Brass Tin Plated
Durable 3 Position Toggle Switch , Small Toggle Switch 2B Series Brass Tin Plated

Large Image :  Durable 3 Position Toggle Switch , Small Toggle Switch 2B Series Brass Tin Plated

Product Details:
Place of Origin: China
Brand Name: LC
Certification: UL, CUL, VDE, ENEC, CQC
Model Number: 2B Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 35 days
Payment Terms: T/T
Supply Ability: 10,000pcs per day

Durable 3 Position Toggle Switch , Small Toggle Switch 2B Series Brass Tin Plated

Description
Mechanical Life: 30,000 Make-and-break Cycles. Contact Resistance: 20mΩ Max.
Insulation Resistance: 1,000MΩ Min. Dielectric Strength: 1,000 Vrms Min.@sea Level.
Operating Temperature: -30℃ To 85℃. Case & Bushing: Glass Filled Nylon 6/6
Switch Support: Brass, Tin Plated. Contact/Terminals: Copper Alloy With Silver Or Gold Plated.
High Light:

ip67 toggle switch

,

on off on toggle switch

Durable 3 Position Toggle Switch , Small Toggle Switch 2B Series Brass Tin Plated





Toggle switch 2B Series

Mechanical life: 30,000 make-and-break cycles.



Contact resistance: 20mΩ max. Initial @2-4VDC 100mA for both silver and gold plated contacts.



Insulation resistance: 1,000MΩ min.



Dielectric strength: 1,000 Vrms min.@sea level.



Operating Temperature: -30℃ to 85℃.



Case & Bushing: Glass filled nylon 6/6, flame retardant, heat stabilized(UL94v-0)



Actuator: Brass, chrome plated, internal O-ring seal. Standard for all actuators.



Switch support: Brass, tin plated.



Contact/Terminals: Copper alloy with silver or gold plated.
