Product Details:
|
| Mechanical Life: | 100,000 Make-and-break Cycles. | Electrical Life: | 50,000 Cycles. |
|---|---|---|---|
| Insulation Resistance: | 1,000MΩ Min. | Dielectric Strength: | 1,000 V RMS@sea Level. |
| Operating Temperature: | -30℃ To 85℃. | Panel Thickness: | 6mm Max., 2mm Min. |
| Switch Support: | Brass Or Steel, Tin Plated. | IP Rating: | IP67. |
| High Light: | on off on toggle switch,3 position toggle switch |
||

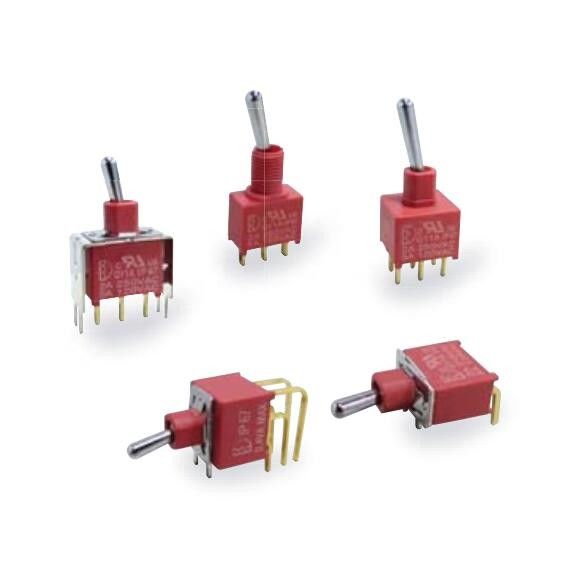

1A Series Electrical Toggle Switches Electrical Life 50,000 Cycles Operating Temperature -30℃ To 85℃
Toggle switch 1A Series
Contact rating: 0.4Volt-Amps(VA)max.@20V max(AC or DC).
Mechanical life: 100,000 make-and-break cycles.
Electrical life: 50,000 cycles.
Contact resistance: 10mΩ max. Initial @2-4VDC 10mA for both silver and gold plated contacts.
Insulation resistance: 1,000MΩ min.
Dielectric strength: 1,000 V RMS@sea level.
Operating Temperature: -30℃ to 85℃.
Torque: 0.8Nm max. Applied to unt.
Panel thickness: 6mm max., 2mm min.
Case & Bushing: Glass filled nylon 6/6, flame retardant.heat stabilized(UL94v-0)
Actuator: Brass, chrome plated with internal, O-ring seal standard.
Switch support: Brass or steel, tin plated.
Contact/Terminals: Copper alloy, gold plated.
IP rating: IP67.
