Product Details:
|
| Product: | Bimetal Thermostat | Electrical Rating: | 16A 250V, 15A 125V, 10A 250V |
|---|---|---|---|
| Temperature Range: | 0~180℃ | Tolerance: | ±3℃ |
| Lifetime: | ≥100,000 Times | Circuit Resistance: | ≤50mΩ |
| Bracket Type: | C Cap, Without Bracket | Terminal Angle: | 0℃ |
| Application: | Industrial, Household, Office, Electrical, Communication | Warranty: | 1year |
| High Light: | High Precision Thermostat KSD301 Switch,Smart Waterproof KSD301 Thermal Switch,Automatic Reset KSD301 Thermal Switch |
||

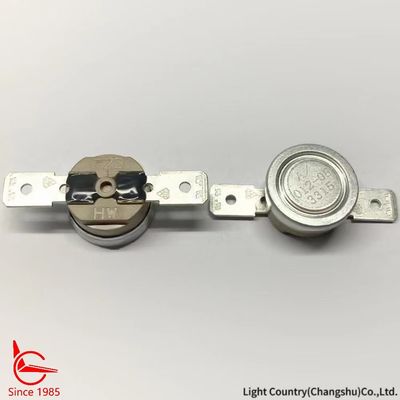

Smart Waterproof Ksd301 Thermal Switch High Precision Thermostat 16A 250V Automatic Reset
1. Company profile:
Light Country was founded in 1985 in Taiwan. We dedicate on bimetal thermal switch and rocker switch for 38 years.
We’re with integration of R&D, production, sales and post-sales as well, to provide fast respond service and best price.
We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.
Our switches are widely used in household appliance, office equipment, beauty industry, medical devices, industial, and so on.
2. Advantages of this Bimetal Thermal Switch:
1) Waterproof.
2) Easy mounting.
3) Small mounting space needed.
4) High precision, excellent temperature control.
3. Parameters and specification:
| Factory name | Light Country(Changshu)Co.,Ltd. |
| Product | Waterproof Bimetal thermostat |
| Model | T23 |
| Type | Automatic Reset(NC) |
| Electrical rating | 16A/250V, 15A/125V, 10A/250V |
| Temperature range | 0℃~180℃ |
| Differential | 8℃ or more, depend on customer's demand. |
| Cap material | Stainless steel |
| Terminal material | Brass with tin plated |
| Terminal angle | 0℃ |
| Case material | PPS |
| Bracket type | C Cap, without bracket |
| Circuit Resistance | ≤50mΩ |
| Insulation Resistance | 100MΩ min. at DC 500V |
| Dielectric Strength | AC 1450V/minute |
| Operating Life | ＞100,000 cycles |
| Product Certification | UL, CUL, CE, CQC, VDE |
| Factory Certification | ISO9001, ISO14001, IATF16949 |
4. Applications of thermal switch:
a) Household: Thermal switches are widely used in coffee makers, breakfast machines, toasters, rice cookers, electric kettles to regulate the temperature and prevent overheating.
b) Electrical motors: In electrical motors, ksd301 thermostat can help to prevent overheating by cutting off the power supply when the temperature exceeds the setting nummer.
c) Heating devices: Thermal switches can help the electric heaters, fan heaters, space heaters, and radiant heaters to control the temperature and prevent excessive heating that may lead to damage or hazards.
d) Industrial equipment: KSD301 thermal switches are also widely used in various industrial processes and systems to protect the equipments and machines, and ensure safe operating.
e) Office equipment: Thermostats are used in duplicators and printers to protect the machine from overheating when working.
5. Terms:
1) Payment:
Please arrange payment simultaneously after placing the order. We will arrange production once we receive the payment because most of our products are customized and can't be put into production in advance.
2) Lead time:
For small lot samples: 7 days
For large order: 10~20days with forecast
20~30 days without forecast.
3) Delivery term:
EXW is preferred, but we can also support FOB, CIF, DDP according to customer's request.
