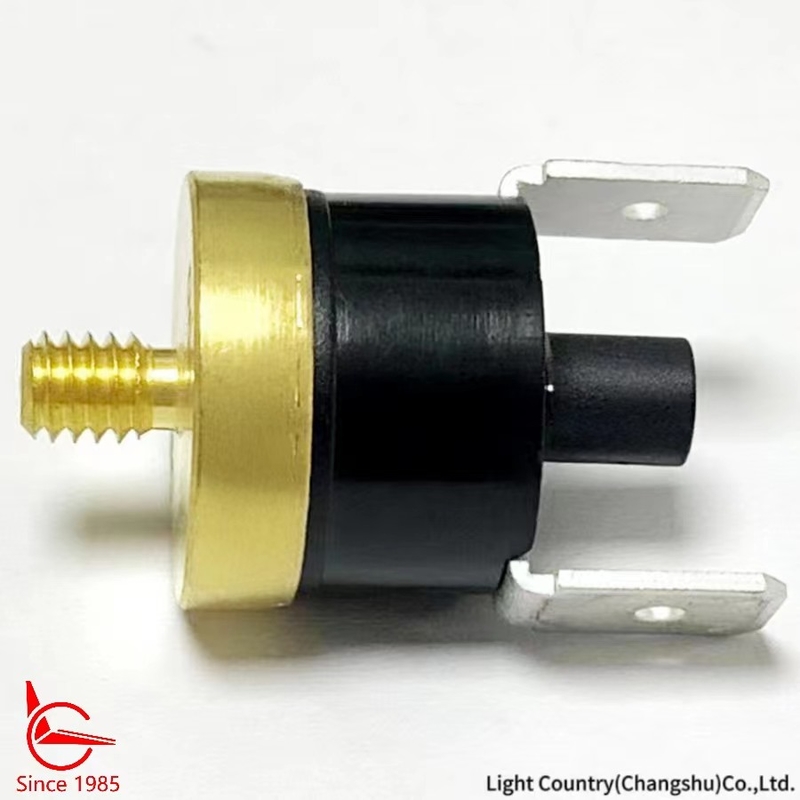

KSD301 Thermal Switch, M5*0.8*6, Manual Reset, for Temperature Protection.
1. Company Profile:
Light Country was founded in 1985 in Taiwan. We have two production factories.
We dedicate on KSD301 thermal switch and rocker switch for more than 38 years.
We’re with integration of design, production, sales and post-sales as well, to provide fastest service and best price.
We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.
Our switches are widely used in household appliance, beauty industry, medical devices, vehicles, and so on.
2. Advantages of our ksd301 Thermal Switch:
1) High customized service even for 1 part.
2) Thermal switch is very important on temperature control and thermal protection, so we control strictly on quality.
3) High precision, wide operating temperature range to meet different requirements.
4) More than 38 years production experience, you can count on us.

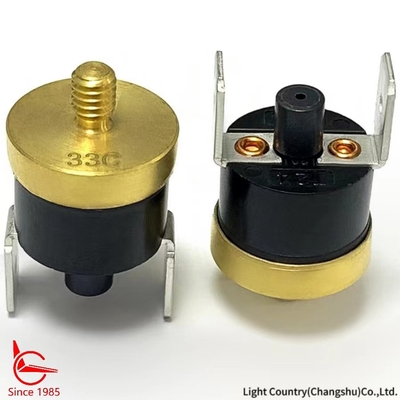

3. KSD301 Thermal Switch parameters and specification of the picture product.
| Factory name |
Light Country(Changshu)Co.,Ltd. |
| Product |
ksd301 thermal switch |
| Model |
T24, height is around 12.4mm |
| Type |
Manual Reset |
| Electrical rating |
16A/250V, 15A/125V, 10A/250V |
| Temperature range |
0℃~150℃ |
| Differential |
8℃ or more, depend on customer's demand. |
| Cap material |
Brass |
| Terminal material |
Brass with tin plated |
| Terminal angle |
90°, vertical |
| Case material |
Phenolic |
| Screw specification |
M5*0.8*6, can be customized based on actual needs. |
| Circuit Resistance |
≤50mΩ |
| Insulation Resistance |
100MΩ min. at DC 500V |
| Dielectric Strength |
AC 1450V/minute |
| Operating Life |
＞100,000 cycles |
| Product Certification |
UL, CUL, CE, CQC, VDE |
| Factory Certification |
ISO9001, ISO14001, IATF16949 |
4. Applications of ksd301 thermal switch:
a) Household: Thermal switches are widely used in coffee makers, breakfast machines, toasters, rice cookers, electric kettles to regulate the temperature and prevent overheating.
b) Electrical motors: In electrical motors, ksd301 thermal switch can help to prevent overheating by cutting off the power supply when the temperature exceeds the setting temperature.
c) Heating devices: Thermal switches can help the electric heaters, fan heaters, space heaters, and radiant heaters to control the temperature and prevent excessive heating that may lead to damage or hazards.
d) Industrial equipment: KSD301 thermal switches are also widely used in various industrial processes and systems to protect the equipments and machines, and ensure safe operating.
e) Office equipment: Thermostats are used in duplicators and printers to protect the machine from overheating when working.
5. Terms:
1) Lead time:
For small lot samples: 7 days
For large order: 10~20 days with forecast
20~30 days without forecast.
We will try best to support to shorten the lead time if any urgent order.
2) Delivery term:
EXW is preferred, but we can also support FOB, CIF, DDP according to customer's request.
6. Please refer to below one-page introduction to find more models:
