Product Details:
|
| Product: | Bimetal Thermal Switch | Electrical Rating: | 16A 250V, 15A 125V, 10A 250V |
|---|---|---|---|
| Temperature Range: | 0~180℃ | Tolerance: | ±3℃ |
| Lifetime: | ≥100,000 Times | Circuit Resistance: | ≤50mΩ |
| Bracket Type: | Loose Bracket | Terminal Angle: | 45℃ |
| Application: | Industrial, Household, Office, Electrical, Communication | Warranty: | 1year |
| High Light: | Household KSD301 Thermal Switch,Automatic Reset KSD301 Temperature Switch,16A 250V KSD301 Switch |
||

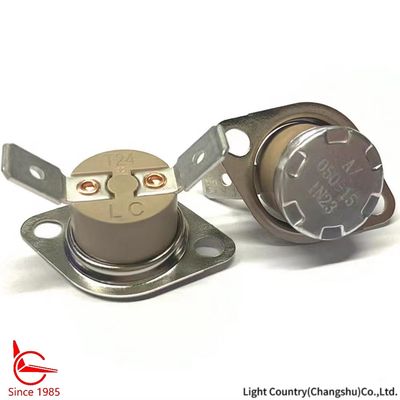

16A 250V Ksd301 Thermal Switch With UL VDE CQC Certification, Automatic Reset And 45℃ Terminal, PPS Case
1. About us.
Light Country was founded in 1985 in Taiwan. We dedicate on ksd301 thermal switch and rocker switch for 38 years.
We’re with integration of R&D, production, sales and post-sales as well, to provide fast respond service and best price.
Our switches are widely used in household appliance, office equipment,beauty industry, medical devices and so on.
We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.
We promise reasonable price, stable quality, timely delivery and superior service.
2. Advantages of our ksd301 Thermal Switch.
1) Flexible design to fulfill customer's different installation requirements.
2) High precision, high sensitivity, excellent temperature control.
3. Ksd301 Thermal Switch Parameters and Specification.
| Factory name | Light Country(Changshu)Co.,Ltd. |
| Product | ksd301 Thermal Switch |
| Model | T24 |
| Type | Automatic Reset(Normally Closed) |
| Electrical rating | 16A/250V, 15A/125V, 10A/250V |
| Temperature range | 0℃~180℃ |
| Differential | 8℃ or more, depend on customer's demand. |
| Cap material | Stainless steel |
| Terminal material | Brass with tin plated |
| Terminal angle | 45℃ |
| Case material | PPS |
| Bracket type | Loose Bracket |
| Circuit Resistance | ≤50mΩ |
| Insulation Resistance | 100MΩ min. at DC 500V |
| Dielectric Strength | AC 1450V/minute |
| Operating Life | ＞100,000 cycles |
| Factory Certificate | ISO9001, ISO14001, IATF16949 |
4. Applications of ksd301 Thermal Switch.
a) Household: Thermal switches are widely used in coffee makers, breakfast machines, toasters, rice cookers, electric kettles to regulate the temperature and prevent overheating.
b) Electrical motors: In electrical motors, ksd301 thermal switches can help to prevent overheating by cutting off the power supply when the temperature exceeds the setting nummer.
c) Heating devices: Thermal switches can help the electric heaters, fan heaters, space heaters, and radiant heaters to control the temperature and prevent excessive heating that may lead to damage or hazards.
d) Industrial equipment: KSD301 thermal switches are also widely used in various industrial processes and systems to protect the equipments and machines, and ensure safe operating.
5. FAQ.
Q1: How can we get a quote?
A: Please offer the demand details of thermal switch, such as operating temperature, case/bracket style, application,etc.
Picture or drawing are welcome for our reference.
Q2: What about the lead time?
A: Less than 7 days for thermal switch sample production.
Around 10~20 days with long term forecast.
Around 20~30 days without forecast.
We will try best to support to shorten the lead time if any urgent order.
Q3: Delivery.
A: We prefer EXW term, but we can ask our forwarder source for transport if customer need.
