Product Details:
|
| Life: | ≥100,000 Times | Warranty: | 1 Year |
|---|---|---|---|
| Product Name: | KSD301 Thermal Switch | Voltage: | 250V |
| Size: | 17.5*20mm | Control Accuracy: | ±3℃ |
| Weight: | 0.01kg | Current: | 16A |
| High Light: | Bimetallic KSD301 Thermal Switch,Automotive Antifreezing Waterproof Thermal Switch,Waterproof KSD301 Bimetallic Switch |
||

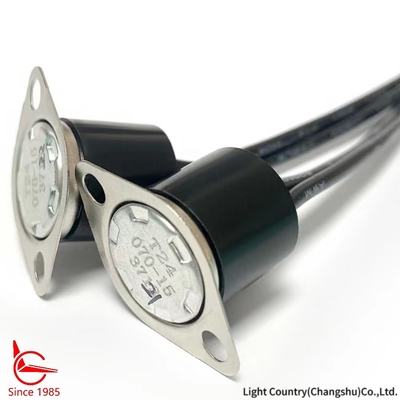

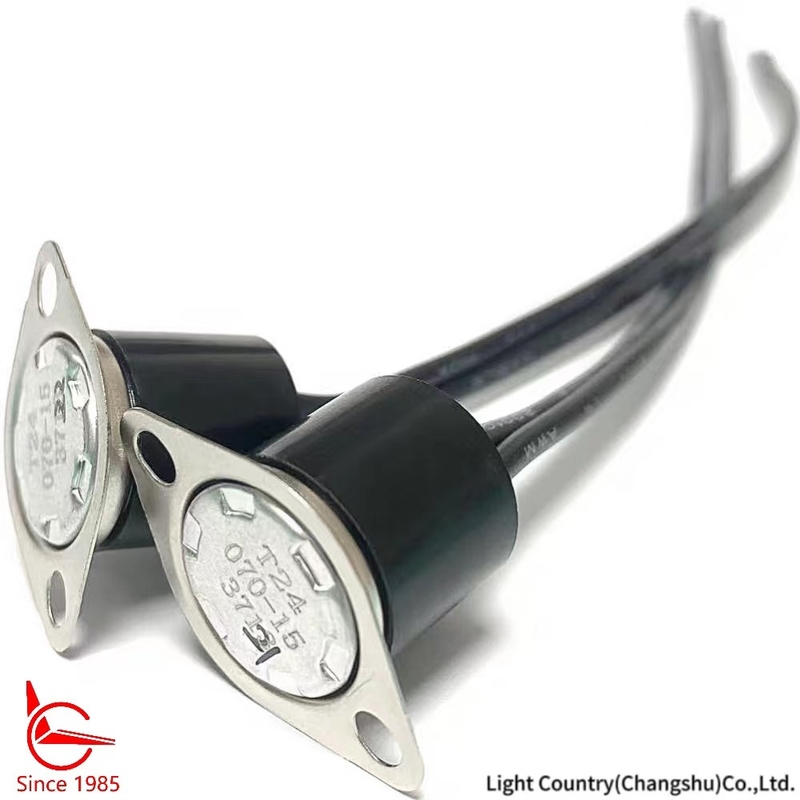

The KSD301 thermal switch, also known as a bimetal thermostat or thermal protector, is a small disc-shaped device that is designed to open or close an electrical circuit based on temperature changes. It is commonly used in various applications where temperature control and protection are required.
| Manufacturer | Light Country(Changshu) Co.,Ltd. |
|---|---|
| Headquarter | Light Country Co.,Ltd. |
| Product Name | KSD301 Thermal switch, Bimetallic switch, or KSD301 thermostat |
| Control Accuracy | ±3℃ |
| Temperature Range | 0-180℃ |
| Life | ≥100,000 Times |
| Circuit resistance | ＜50mΩ |
| Voltage/Current | 250V AC, 16A |
| Material | Aluminum, Phenolic, Copper, Wire |
| Function | Temperature control |
| Additional handling | Put the thermal switch in a waterproof enclosure and filled with epoxy, make sure thermal also could work under moisture environment. |
| Weight | 0.01KG |
| Thermal Switch Certificate | UL, VDE, TUV, CQC |
| Manufacturer Certificate | ISO9001, ISO14001, IATF16949 |
|
Household Appliances |
It is widely used in household appliances like electric kettles, coffee makers, toasters, rice cookers, and irons to regulate the temperature and prevent overheating, ensuring safe operation. |
|
Electrical Motors |
In electric motors, the KSD301 thermal switch helps protect against overheating by monitoring the motor's temperature and cutting off the power supply when the temperature exceeds a specific threshold. |
|
Lighting Fixtures |
It can be integrated into lighting fixtures, especially those with halogen or incandescent bulbs, to ensure that excessive heat does not damage the fixture or surrounding components. |
|
Power Supplies and Transformers |
The KSD301 thermal switch is utilized in power supplies and transformers to regulate and control temperature, preventing thermal damage and ensuring safe operation. |
|
Automotive Applications |
It can be found in automotive systems like cooling fans, engine compartments, and seat heaters, where temperature control and protection are essential. |
|
Industrial Equipment |
The KSD301 thermal switch is used in various industrial applications, including control panels, machinery, electric motors, and manufacturing processes, to monitor and regulate temperatures for operational safety and equipment protection. |
|
Heating Devices |
It can be employed in electric heaters, fan heaters, space heaters, and radiant heaters to control the temperature and prevent excessive heating that may lead to damage or hazards. |
