Product Details:
|
| Power Supply Voltage: | 80~260Vac | Rated Current: | 20A |
|---|---|---|---|
| Rated Power: | 4500W | Energy Measuring Range: | 0~9999kWh |
| Accuracy Class: | 1.0 | Working Frequency: | 45~65Hz |
| Usage: | Industrial | Certification: | CE/FCC |
| Highlight: | 80v AC Digital Meter,LCD Display AC Digital Meter,260V AC Digital Meter |
||

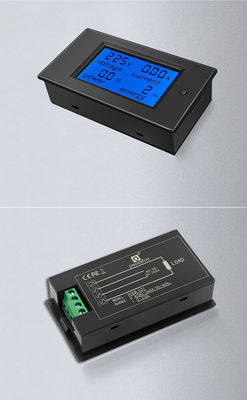

LCD Display AC Digital Meter Ammeter Voltage Meter Energy Meter 80~260V
1. Functions and features:
a). Electrical parameter measurement, including current, voltage, active power, energy;
b). Overload alarm;
c). Reset function of energy key;
d). Data storage when power off;
e). Large screen LCD display the current, voltage, active power and energy;
f). Backlight can be turned on or off.
![]()
![]()
![]()
![]()
![]()
2. Parameters:
| Power Supply | 80~260V AC |
| Current Measurement Range | 0~20A |
| Voltage Measurement Range | 80~260V |
| Power Measurement Range | 0~4500W |
| Energy Measurement Range | 0~9999kWh |
| Working Frequency | 45~65Hz |
| Operating Temperature | -20~60℃ |
| Accuracy Class | 1.0 |
| Color | Black |
| Product Size | 8.96*4.96*2.44 cm |
| Hole Size | 8.66*4.66 |
| Product Weight | 87g |
3. Dimensions and connections:
![]()
![]()
