Product Details:
|
| Usage: | Industrial | Power Supply Voltage: | 100~240V AC 50/60Hz |
|---|---|---|---|
| Power Consumption: | ≤3W | Accuracy: | 0.3%FS |
| Working Environment: | 0～50℃ 35～85%RH | Refresh Rate Load: | 2.5times/second |
| Display Range: | 0～±19999 | Dimension: | 48H×96W×58L |
| Highlight: | Electrical Energy Measuring Instrument DA8,volt amp tester 0.3%FS,DA8 4 1/2 digits volt amp tester |
||

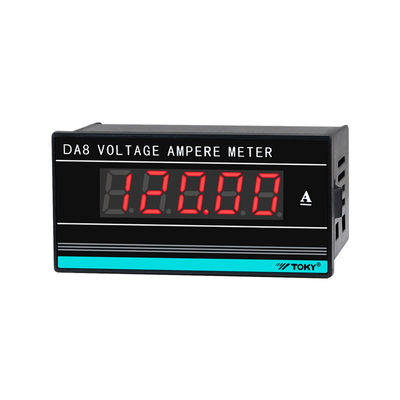

DA8 series 4 1/2digits voltage and amperage meter, high accuracy, stable performance, small size, wide display range
1. Features and advantages of DA8 voltmeter and ammeter:
a). Hardware design,good anti-interference,stable porformance.
b). AC/DC 85～265 switch power
c). 4 1/2 digits,high measured range,wide display range±19999.
d). 58mm short module size design,save mounting space.
2. Model specification:
3. Technical parameter:
| Input | Refer to measuring specification table |
| Accuracy | AC:±0.3%F.S±3Digits DC:±0.2%F.S±3Digits |
| AD switch | Double integral |
| Refresh rate | 2.5times/second |
| Input inpedance | Refer to measuring specification table |
| Display range | 0～±19999 |
| Display | 4 1/2digits red 0.56 inch LED |
| Overflow indication | display “1” or “-1” |
| Working environment | 0～50℃ 35～85%RH |
| Storage environment | -20～60℃ 35～90%RH |
| Power supply | AC 100～240V 50/60Hz |
| Power consumption | ≤3W |
| Dielectric strength | 1500V AC 50Hz |
| Insolation strength | 100MΩ DC 500V |
| Dimension | 48H×96W×58L |
| Vibration | 10～55Hz |
| Weight | 0.5kg |
4. Appearance and installation dimensions:
5. Connections:
