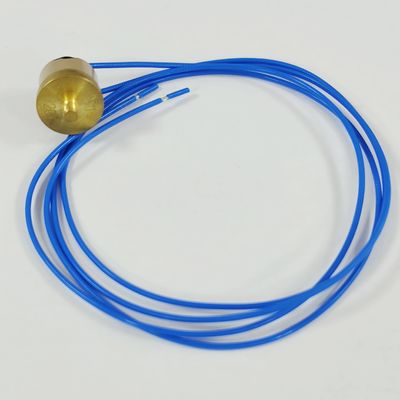

Thermal Protection KSD301 Custom Thermal Protector With Wire

Thermal Protection KSD301 Custom Thermal Protector With Wire
Thermal Protection KSD301 Custom Thermal Protector With Wire
Thermal Protection KSD301 Custom Thermal Protector With Wire Thermal Protection KSD301 Custom Thermal Protector With Wire Thermal Protection KSD301 Custom Thermal Protector With Wire Thermal Protection KSD301 Custom Thermal Protector With Wire

Large Image :  Thermal Protection KSD301 Custom Thermal Protector With Wire

Product Details:
Place of Origin: China
Brand Name: Light Country
Certification: UL, TUV, VDE, CQC
Model Number: T23
Payment & Shipping Terms:
Minimum Order Quantity: 1,000ea
Price: Depend on order quantity
Packaging Details: 1000pcs(Min. Package)
Delivery Time: 20~30 days
Payment Terms: T/T, Paypal
Supply Ability: More than 50,000pcs daily

Thermal Protection KSD301 Custom Thermal Protector With Wire

Description
Product Name: KSD301 Custom Thermostat Type: Automatic Reset
Operating Temperature: 0℃~200℃ Terminals: Wire
Case: PPS Electrical Rating: 10A 250V, 15A 125V, 16A 250V
High Light:

KSD301 Thermal Protector

,

Custom Thermal Protector

,

PPS Case Thermal Protector

Light Country KSD301 Custom Thermal Protector with Wire for Thermal Protection

Light Country KSD301 Custom Thermostat with Wire for Thermal protection.



1. About us.

  Light Country was founded in 1985 in Taiwan.

  We dedicate on KSD301 Thermostat and Rocker switch.

  These parts are widely used in household appliance, office equipment, industrial facility, medical device.

  To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.

  We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.

  We promise reasonable price, stable quality, timely delivery and superior service.



2. Advantages of Light Country KSD301 Thermostat.

 1) We're the manufacturer, provide best price, and fastest service respond.

 2) Flexible customized design to fulfill different installation requirement.

 3) High precision, high sensitivity for excellent temperature control and thermal protection.

 4) With 100% output inspection to achieve ZERO defect on customer side.



3. KSD301 Thermostat Parameters and Specification.

  Manufacturer   Light Country(Changshu)Co.,Ltd
  Product   KSD301 Custom Thermostat
  Type   Automatic Reset
  Electrical Rating   10A 250V, 16A 250V, 15A 125V
  Operating temperature   0℃~200℃
  Differential   8℃ or more, depend on customer's actual demand.
  Cap   Brass Screw, Aluminum
  Terminal material   Wire(Contact with us for options)
  Case   PPS
  Application    Industrial facility
  Thermostat Certificate   UL, VDE, TUV, CQC
  Factory Certificate   ISO9001, ISO14001, IATF16949
  Circuit Resistance   <50mΩ
  Insulation Resistance   100MΩ min. at DC 500V
  Dielectrical Strength   AC 1450V for one minute
  Operating Life   ≥100,000 cycles



4. Attentions about KSD301 Thermostat installation.

1) When select electric thermostat, need to confirm the accurate temperature. To avoid temperature changes caused by thermal inertia, thermal conduction and other factors, need to consider the following factors.

a. Detection part of temperature control.

b. Thickness and material of heat transfer component.

c. The power of the heating element.

d. Amount of heated medium.

e. Ambient temperature and air pressure.



2) During electric thermostat using process, need to avoid moisture and pollution, otherwise it will affect the electrical performance of the product. Recommended working environment is that relative humidity ≤90%, no contact with corrosive and flammable things.



3) During using process, need high attention to avoid cracks caused by the large force on the case inside, and liquid penetrates into the thermostat. Keep the case clean to prevent the insulation performance from decreasing or even short circuit breakdown after the thermal switch polluted by the conductive medium.



4) When using thermostat, recommend to choose following wires considering rated current,



Rated current

Traverse area

UL wire gauge

Rated current

Traverse area

UL wire gauge

≤3A 0.3 mm² AWG22 ≤15A 2.0 AWG14
≤5A 0.5 mm² AWG20 ≤20A 3.5 AWG12
≤7A 0.75 mm² AWG18 ≤30A 5.5 AWG10
≤12A 1.25 mm² AWG16



5. FAQ about our KSD301 Thermostat.

Q1: How can we get a quote?
A: Please offer detail specification, such as operating temperature, case/bracket style, application, quantity etc.

Pictures are welcome for our reference.



Q2: How can we get a drawing?

A: After confirm the detail specification, we will provide the drawing via E-mail, WhatsApp, Wechat and other ways.


Q3: What is the MOQ?
A: Normally the MOQ is 1,000 pcs.

Larger quantity could win lower price.

We will support small quantity for test purpose.


Q4: What about the lead time?
A: samples would usually be done within 1 week.

Mass production orders will take around 20~30 days.


Q5: Guarantee?
A: We offer 1 year guarantee.



If the picture shows model could not meet your demand, please refer to below KSD301 Thermostat Specification for more options, or share your detail specification, we will provide drawing and samples for further verification.
