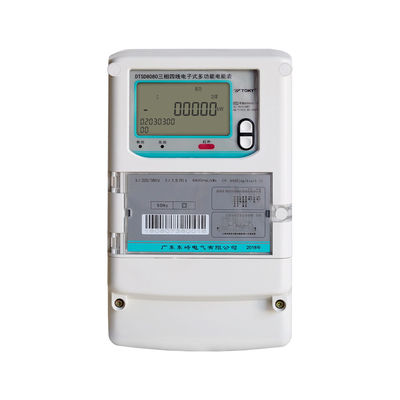

3 Phase Multifunction Power Meter 2loop RS485 Port Modbus-RTU protocol DTSD / DSSD8080 Series

3 Phase Multifunction Power Meter 2loop RS485 Port  Modbus-RTU protocol DTSD / DSSD8080 Series
3 Phase Multifunction Power Meter 2loop RS485 Port  Modbus-RTU protocol DTSD / DSSD8080 Series

Large Image :  3 Phase Multifunction Power Meter 2loop RS485 Port Modbus-RTU protocol DTSD / DSSD8080 Series

Product Details:
Place of Origin: China
Brand Name: Toky
Certification: CE
Model Number: DTSD/DSSD8080 series
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Carton
Delivery Time: 14days
Payment Terms: T/T

3 Phase Multifunction Power Meter 2loop RS485 Port Modbus-RTU protocol DTSD / DSSD8080 Series

Description
Usage: Industrial Power Supply Voltage: DC48V,AC/DC100~240V
Power Consumption: ≤5W Accuracy: 0.2%
Working Environment: -10~45℃ 5~90%RH(no Condensation) Environmental Standard: IEC 60068-2
Safety Standard: IEC 61010-1,UL61010-1 Communication: RS485
Baud Rate: 1.2kbps、2.4kbps、4.8kbps、9.6kbps、19.2kbps、38.4kbps
High Light:

RS485 Port Multifunction Power Meter

,

IEC 61010-1 Multifunction Power Meter

,

Modbus RTU Protocol Multifunction Energy Meter

DTSD/DSSD8080 Series high accuracy 3phase multifunction power meter, 2*RS485 port, Modbus-RTU protocol
1. Features and advantages:
a). Meet the special requirement of GB/T 17215.301-2007 multifunction meter.
b). Meet the accuracy requirement of GB/T 17215.322-2008 0.2S level active energy.
c). 1 IR communication port and 2 RS485 communication port. Compatible with DL/T 645-2007.
d). Forward/reverse active energy and 4 quadrant energy measuring, time-of-use energy measuring, multi-rate measuring, and etc.

e). Excellent function of event recording, frozen, meter reading, and etc.
f). Measure all the electrical parameters, such as voltage, current, power, frequency, power factor, and etc.
g). Relay control function, can be remote controlled or programming controlled.

h). Widly used in low and medium voltage distribution cabinet, industrial automation, intelligent switch cabinet, building automation, energy management system, etc.

2. Model specification:
3 Phase Multifunction Power Meter 2loop RS485 Port  Modbus-RTU protocol DTSD / DSSD8080 Series 0
3. Technical parameter:

Input signal Input voltage 3*100V/57.7V 3*380V/220V Power consumption per phase<2VA
Input current 3*1.5(6)A 3*10(60)A 3*20(80)A Power consumption per phase<1VA
Rated frequency 50Hz,60Hz
Accuracy Active power:level 0.2S,0.5S,1.0;
Reactive power:level 2;
Voltage & current:0.1%FS
Measurement range Current:0.001In~1.2In
Voltage:0.9~1.1Un
Electrical parameter Relay capacity AC 250V 5A; DC 24V 5A(Resistive load)
Backup power Voltage:3.6V; Capacity:≥1000mA;
Life:≥10years; Data storage after power-off:≥10years
Display device Industrial level LCD
Clock accuracy 0.5s/d
Communiction Communication port 2*RS485 port,1*IR communication,support DL/T 645-2007 and Modbus RTU protocol
Baud rate 1.2kbps,2.4kbps,4.8kbps,9.6kbps,19.2kbps,38.4kbps
EMC ESD level 4,Contact discharge±8000V, air discharge±15000V
Pulse group level 4 ±4000Vp-p
Frequency drop level 3
Lightning surge level 4,line to ground:±4000V;line to line ±4000V
Environment Working environment -10~45℃ 5~90%RH(no condensation)
Limit condition -20~55℃
Storage environment -40~70℃
Shell specification Vibration 10~57Hz(XYZ direction 2G/30min)
Material VO level flame-retardant PC+ABS;PC mirror
Protection level IP65(Front panel)
Dimension 265mm×170mm×75mm(L×W×H)
Power Power voltage DC48V,AC/DC100~240V
Total consumption <5W
Safe Dielectric strength 2000VAC 50Hz
Insolation strength 100MΩ DC 500V
Total weight About 2kg


4. Appearance and installation dimensions:
 3 Phase Multifunction Power Meter 2loop RS485 Port  Modbus-RTU protocol DTSD / DSSD8080 Series 1
5. Connections:
3 Phase Multifunction Power Meter 2loop RS485 Port  Modbus-RTU protocol DTSD / DSSD8080 Series 2
