Product Details:
|
| Usage: | Industrial | Power Supply Voltage: | 100～240Vac，50/60Hz |
|---|---|---|---|
| Power Consumption: | ≤5W | Accuracy: | 0.5% |
| Working Environment: | 0～50℃ 5～90%RH | Analog Output: | 4～20mA |
| Environmental Standard: | IEC 60068-2 | Safety Standard: | IEC 61010-1，UL61010-1 |
| Communication: | RS485 | Baud Rate: | 4.8kbps、9.6kbps |
| High Light: | 4.8kbps Multifunction Power Meter,Modbus RTU Protocol Multifunction Power Meter,3 Phase Multifunction Energy Meter |
||

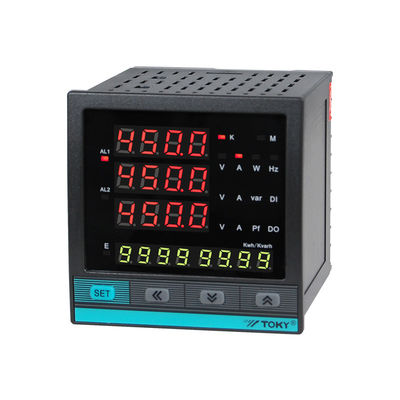

DW9E Series high accuracy 3phase multifunction power meter, RS485, Modbus-RTU protocol
1. Features and advantages:
a). Digital LED display.
b). Can measure 28 electrical parameters, including voltage/current/active power/reactive power/frequency/power factor, and etc.
c). 4 loop DI and 2 loop alarm output, isolated input/output with remote and telecommand functions.
d). RS485 communication port, support MODBUS-RTU protocol.
e). ptional 1loop 4 ～ 20mA analog output.
f). Widly used in low and medium voltage distribution cabinet, industrial automation, intelligent switch cabinet, building automation, energy management system, etc.
2. Model specification:
3. Technical parameter:
| Input signal | Input voltage | 3*100V/57.7V 3*380V/220V Power consumption per phase<1VA |
| Voltage impedance | ≥300KΩ | |
| Input current | 3*5A(1A can be ordered) Power consumption per phase<0.4VA | |
| Current impedance | ＜20mΩ | |
| Rated frequency | 50Hz,60Hz | |
| Accuracy | Active power:level 1; Reactive power:level 2; Voltage & current:0.5%FS Frequency:±0.1Hz |
|
| Measurement range | Current:0.001In～1.2In Voltage:0.01～1.1Un |
|
| Electrical parameter | Relay capacity | AC 250V 5A; DC 24V 5A(Resistive load) |
| Analog output | DC 4～20mA with load＜400Ω | |
| Display device | RED highlight LED display | |
| Communiction | Communication port | RS485 port Modbus RTU protocol |
| Baud rate | 4.8kbps,9.6kbps | |
| EMC | ESD | level 3,Contact discharge±6000V, air discharge±8000V |
| Pulse group | level 4 ±4000Vp-p | |
| Frequency drop | level 3 | |
| Lightning surge | level 3,line to ground:±4000V;line to line ±2000V | |
| Environment | Working environment | 0～50℃ 5～90%RH(no condensation) |
| Storage environment | -25～60℃ | |
| Shell specification | Vibration | 10～57Hz(XYZ direction 2G/30min) |
| Material | VO level flame-retardant PC+ABS;PET mask | |
| Protection level | IP65(Front panel) | |
| Power | Power voltage | AC/DC 100～240V 50/60Hz |
| Total consumption | ＜5W | |
| Safe | Dielectric strength | 2000VAC 50Hz |
| Insolation strength | 100MΩ DC 500V | |
| Total weight | About 0.6kg | |
4. Appearance and installation dimensions:
5. Connections:
