Product Details:
|
| Product: | KSD301 Snap Action Thermostat | Working Temperature: | 0℃~180℃ |
|---|---|---|---|
| Electrical Rating: | 10A 250V, 15A 125V, 16A 250V. | Operating Life: | 100,000 Cycles |
| High Light: | KSD301 snap action thermostat,snap action thermostat KSD301 250V 10A,snap disc thermostat 250V 10A |
||
1. About us.
Light Country was founded in 1985 in Taiwan.
We dedicate on KSD301 snap action thermostat and rocker switch.
These parts are widely used in household appliance, electrical products, industrial facilities, medical devices, etc.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive service, effective improvements.
2. Why choose KSD301 Snap Action Thermostat?
1) High sensitivity, rapid heat transmission, for excellent thermal protection and temperature control.
2) All snap action thermostats will be tested before shipping, high pass rate.
3) Easy mounting.
4) Many choices for components used on snap action thermostat, flexible support for customized production.
3. Parameters and Specification.
| Factory | Light Country(Changshu)Co.,Ltd |

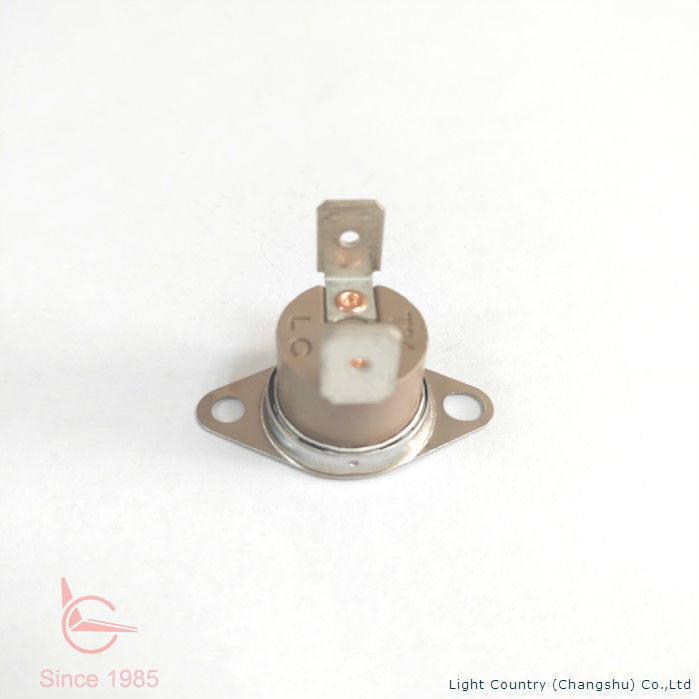

| Product | KSD301 Snap Action Thermostat |
| Type | Automatic Reset |
| Electrical Rating | 10A 250V, 16A 250V, 15A 125V |
| Operating Temperature | 0℃~180℃ |
| Differential |
8℃ or more(depend on customer's demand) |
| Endurance | 100,000 cycles |
| Bracket | Fixed bracket |
| Case material | PPS |
| Terminal | 90° |
| Terminal | Copper with tin plated |
| Circuit Resistance | 50mΩ or less |
| Insulation Resistance | 100MΩ or more(DC 500V) |
| Dielectric Strength | AC 1,450V for 1 minute |
| Application | Household such as clothes dryer |
When using snap action thermostat, recommend to choose following wires considering rated current:
| Rated current | ≤3A | ≤5A | ≤7A | ≤12A |
| Traverse area | 0.3 mm² | 0.5 mm² | 0.75 mm² | 1.25 mm² |
| UL wire gauge | AWG22 | AWG20 | AWG18 | AWG16 |
| Rated current | ≤15A | ≤20A | ≤30A | -- |
| Traverse area | 2.0 | 3.5 | 5.5 | -- |
| UL wire gauge | AWG14 | AWG12 | AWG10 |
-- |
4. If the picture product could not meet your demand, please refer to below KSD301 Thermostat Specifcation for more choices, kindly share the required details such as action/reset temperature, bracket, terminal types... with us. We will support customized production for you.
5. Attentions about KSD301 Snap Action thermostat installation.
1) During thermostat installation, need high attention that the temperature-sensitive surface should not be deformed, and the top of the cap should not be collapsed or deformed, so as not to affect the temperature performance and electrical performance of the product.
2) Snap action thermostat shall be installed with cap connected with the grounding metal parts or the power grounding wire of the equipment to reduce the electromagnetic radiation and interference signals of the complete machine.
3) During installation, need to make sure the thermostat’s temperature-sensing surface to be evenly contacted with the temperature-controlling part, and the force should be evenly applied to stabilize the temperature-sensing. Besides, need to coat the surface of temperature-sensitive with thermal grease or other similar heat-conducting medium.
