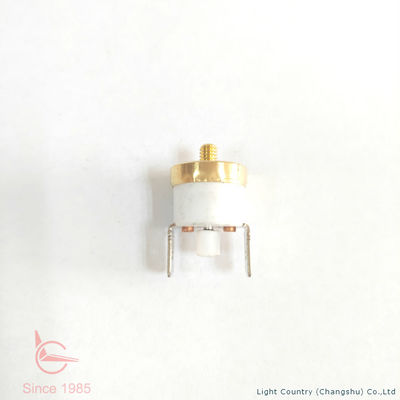

KSD301 Manual Reset Thermostat Round Cap Ceramic Body For Temperature Control

KSD301 Manual Reset Thermostat Round Cap Ceramic Body For Temperature Control
KSD301 Manual Reset Thermostat Round Cap Ceramic Body For Temperature Control
KSD301 Manual Reset Thermostat Round Cap Ceramic Body For Temperature Control KSD301 Manual Reset Thermostat Round Cap Ceramic Body For Temperature Control KSD301 Manual Reset Thermostat Round Cap Ceramic Body For Temperature Control

Large Image :  KSD301 Manual Reset Thermostat Round Cap Ceramic Body For Temperature Control

Product Details:
Place of Origin: China
Brand Name: LC
Certification: UL, TUV, VDE, CQC
Model Number: T24
Payment & Shipping Terms:
Minimum Order Quantity: 2000ea, also support test quantity.
Price: Depend on quantity and SPEC.
Packaging Details: Min. Package 1000pcs
Delivery Time: 20~30 days
Payment Terms: T/T
Supply Ability: 1 Million monthly

KSD301 Manual Reset Thermostat Round Cap Ceramic Body For Temperature Control

Description
Manufacturer: Light Country(Changshu) Co., Ltd. Product Name: KSD301 Manual Reset Thermostat
Electrical Rating: 10A 250V, 15A 125V, 16A 250V. Working Temperature: 0℃~250℃
Function: Temperature Control Lifetime: 100,000 Cycles
Factory Approvals: ISO9001, ISO14001, IATF16949
High Light:

KSD301 manual reset thermostat

,

manual reset thermostat 125V 15A

,

manual reset type thermostat T24

KSD301 Manual Reset Thermostat with Round Cap, Ceramic body for Temperature Control





Light Country Co., Ltd. was founded in 1985 in Taiwan, Dongguan branch built in 1997, Changshu site in 2004.

We dedicate on switches, our main products are KSD301 thermostat, rocker switches.

These parts are widely used in household appliance, electrical products, office equipment, industrial facilities, medical devices and so on.

They could be customized designed based on end-customer's demand.

To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.

We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.

We promise reasonable price, stable quality, timely delivery and superior service.

We deserve customer's trust.



1. Parameters.

  Manufacturer   Light Country(Changshu) Co.,Ltd.
  Product   KSD301 Manual Reset Thermostat
  Electrical Rating   16A 250V, 15A 125V, 10A 250V
  Operating Temperature   0℃~250℃
  Operating life   100,000 cycles.
  Differential    15k is the standard.
  CAP   Round Screw Copper Head
  Case   Ceramic
  Terminal Orientation   90°, 0°,30°,45°,90°,180°...are available.
  Terminal Material   Steel with nickle plated.
  Terminal Size   4.75mm, 6.35mm...
  Circuit Resistance   50mΩ or less
  Insulation Resistance   100MΩ or more(DC 500V)
  Unit Weight   5.2g.



When using thermostat, recommend to choose following wires considering rated current:

Rated current ≤3A ≤5A ≤7A ≤12A
Traverse area 0.3 mm² 0.5 mm² 0.75 mm² 1.25 mm²
UL wire gauge AWG22 AWG20 AWG18 AWG16
Rated current ≤15A ≤20A ≤30A --
Traverse area 2.0 3.5 5.5 --
UL wire gauge AWG14 AWG12 AWG10 --



2. KSD301 Thermostat Simple Specification with Common Component Options for Best Pricing Support.

You can find which combination could meet your requirement, or share your details, we will support customized production.

KSD301 Manual Reset Thermostat Round Cap Ceramic Body For Temperature Control 0

KSD301 Manual Reset Thermostat Round Cap Ceramic Body For Temperature Control 1



3. Advantages for KSD301 Manual Reset thermostat.

 1). Easy mounting.

 2). Rapid heat transmission, high sensitivity for fast action and thermal protection.

 3). High precision without breakdown, no flashover.

 4). High durability, high loading capacity.

 5). Every product would be tested, extremely high temperature pass rate.



4. Attentions about KSD301 Manual Reset Thermosat Installations.

 1) Manual reset series products can only be reset after the temperature drops at least 20℃; And when reset, the force should be moderate, to just can make the ksd301 thermostat reset as appropriate (about 5~6N), otherwise there is an impact on the temperature.



 2) During installation, need high attention that the temperature-sensitive surface should not be deformed, and the top of the cap should not be collapsed or deformed, so as not to affect the temperature performance and electrical performance of the product.



 3) During using process, need high attention to avoid cracks caused by the large force on the case inside, and liquid penetrates into the thermostat. Keep the case clean to prevent the insulation performance from decreasing or even short circuit breakdown after the thermostat polluted by the conductive medium.



 4) ksd301 Thermostat shall be installed with cap connected with the grounding metal parts or the power grounding wire of the equipment to reduce the electromagnetic radiation and interference signals of the complete machine.



5. FAQ.

Q1: How can we get a quote?
A: Please offer ksd301 manual reset thermostat detail specification, such as operating temperature, case/bracket style, application, quantity etc. Picture or drawing are welcome for our reference.



Q2: How can we get a drawing.

A: After confirm the detail specification, we will provide the drawing via E-mail, WhatsApp, Wechat and other ways.


Q3: What about the lead time?
A: For KSD301 manual reset thermostat sample making, it would be done in 1 week.

    As for mass production, lead time would be around 20~30 days.

   We will try best to support to shorten the lead time if any urgent order.


Q4: Guarantee?
A: We offer at least 1 year guarantee.



Q5: Express or Forwarder for delivery.

A: Customer could assign a express or forwarder for delivery, or we ask our source to do it if customer think it is more cost-saving.
