Product Details:
|
Product Name: | Bimetal Thermostat | Operating Temperature: | 0℃~250℃ |
---|---|---|---|
Eletrical Rating: | 16A 250V, 10A 250V, 15A 125V | Lifetime: | 100,000 Cycles |
High Light: | 15A 125V Bimetal Thermostat,UL TUV bimetal temperature switch,T24 Bimetal Thermostat |

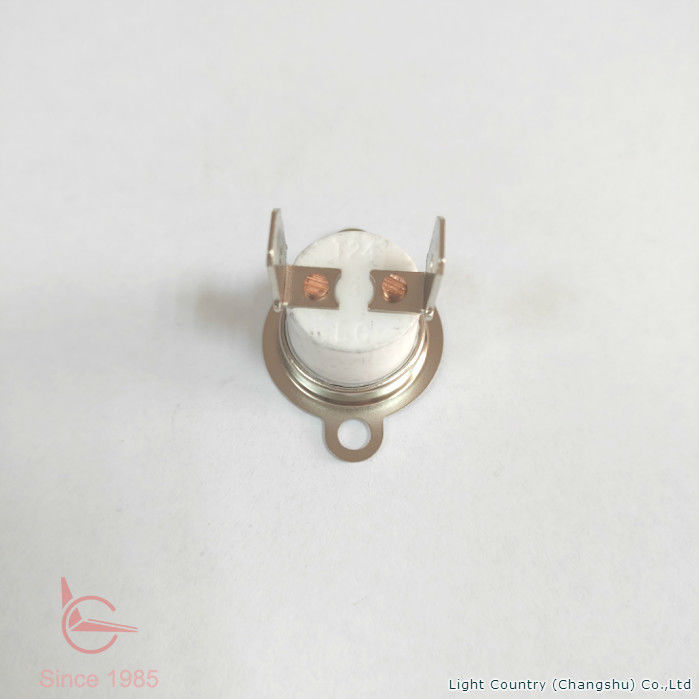

Manufacturer Light Country Bimetal Thermostat with UL TUV for Air Fryer
KSD301 Bimetal Thermostat is a small bimetal snap-action thermal protector with shell.
Action principle is that the component bimetal disc jump at the change of temperature, the contact point can be closed/opened rapidly to connect/disconnect the circuit.
A wide range of temperature, low temperature till high temperature, can be set according to customer requirements.
1. Why choose KSD301 Thermostat Switch.
1) High precision, high sensitivity and rapid heat transmission for thermal protection no matter for individual people or whole unit machine .
2) High quality, no breakdown, no flashover. High durability, high loading capacity.
3) The bimetal thermostat will be tested 100% before shipping to ensure the quality.
4) Many common component choices, always support customized production.
5) We always promise for reasonable price and best service, to fulfill customer's demand.
2. Parameters and Specification.
Company | Taiwan Light Country |
Product | Bimetal Thermostat |
Type | Automomatic Reset |
Electrical Rating | 16A 250V, 10A 250V, 15A 125V |
Operating Temperature | 0℃~250℃ |
Differential | 8℃ or more(depend on customer's demand) |
Endurance | 100,000 cycles |
Bracket | Loose U type bracket(refer to below specification for more choices) |
Terminal | Steel with nickel plated |
Case | Ceramic |
Circuit Resistance | 50mΩ or less |
Insulation Resistance | 100MΩ or more(DC 500V) |
Dielectrical Strength | AC 1,450V for 1 min. |
If the picture showed product is not the right one you want, kindly refer to below simple KSD301 Thermostat Specification for more choices.
We will deeply appreciate if you can share the product details such as action temperature, the requirement of component cap, bracket and terminal...we will support customization and provide best price.
3. Attentions about Bimetal Thermostat.
1) When select bimetal thermostat, need to confirm the accurate temperature. To avoid temperature changes caused by thermal inertia, thermal conduction and other factors, need to consider the following factors.
a. Detection part of temperature control.
b. Thickness and material of heat transfer component.
c. The power of the heating element.
d. Amount of heated medium.
e. Ambient temperature and air pressure.
2) During bimetal thermostat switch using process, need to avoid moisture and pollution, otherwise it will affect the electrical performance of the product. Recommended thermostat switch working environment is that relative humidity ≤90%, no contact with corrosive and flammable things.
3) During installation, need to make sure the bimetal thermostat’s temperature-sensing surface to be evenly contacted with the temperature-controlling part, and the force should be evenly applied to stabilize the temperature-sensing. Besides, need to coat the surface of temperature-sensitive with thermal grease or other similar heat-conducting medium.
4. FAQ.
Q1: How can we get a quote?
A: Please offer the specification, such as operating temperature, case/bracket style, application, quantity etc.
Picture or drawing are welcome for our reference.
Q2: How can we get a drawing.
A: After confirm the detail specification, we will provide the drawing via E-mail, WhatsApp, Wechat and other ways.
Q3: What is the MOQ?
A: Normally our MOQ is 1000 pcs.
Larger quantity could win better price. We can support small quantity for test or pilot run purpose.
Q4: What about the lead time?
A: For sample making, it usually takes around 7 days.
Lead time would be 10~20 days with long term forecast.
Estimated lead time would be around 30 days without forecast.
We will try best to support to shorten the lead time if any urgent order.
Q5: Which payment terms you can accept?
A: T/T or pay via PayPal in advance, could talk based on customer actual status.
Q6: Package carton dimension.
A: For 1,000pcs, use 38*29*25mm carton.
For 2,000pcs, use the carton with 56*38*25mm or 41*30*21mm.
Q7: Express or Forwarder for delivery.
A: Customer could assign a express or forwarder for delivery, or we ask our source to do it if it's more cost-saving.
5. About us.
Light Country Co., Ltd. was founded in 1985 in Taiwan.
We have been dedicating on bimetal thermostat and rocker switch.
These parts are widely used in household appliance, electrical products, industrial facilities, medical devices and so on.
They could be customized designed based on end-customer's demand.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.
We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive service, effective improvements.
