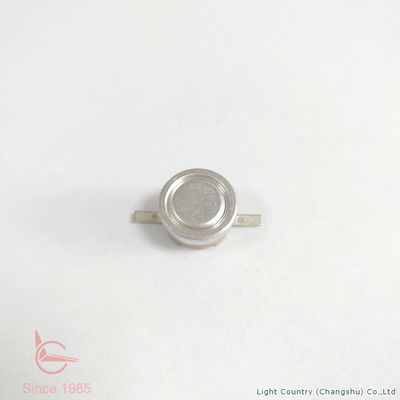

Product Details:
|
| Product: | Bimetal Thermal Protector | Operating Temperature: | 0℃~180℃ |
|---|---|---|---|
| Electrical Rating: | 10A 250V, 16A 250V, 15A 125V | Operating Life: | 100,000 Cycles |
| Application: | For Microwave Oven | Case: | PPS |
| Terminal Material: | Copper With Tin Plated | Circuit Resistance: | ≤50mΩ |
| Highlight: | T23 bimetal thermal protector,PPS bimetal thermal protector,thermostat 16a 250v |
||
We're the Taiwan brand Light Country, and we're the manufacturer.
1. Why choose our Bimetal Thermal Protector?
1) We deserve customers' trust, always support reasonable price and best service.
2) High sensitivity, rapid heat transmission, for excellent thermal protection.
3) Each thermostat will be tested before shipping, to make sure the quality.
4) Easy mounting.
5) Many common choices for bimetal thermal protector components, also support customized production.
2. Parameters and Specification.
| Factory | Light Country(Changshu)Co.,Ltd |
| Product | Bimetal Thermal Protector |
| Application | Microwave Oven |
| Type | Automatic Reset |
| Height | 9.6mm |
| Electrical Rating | 10A 250V, 15A 125V, 16A 250V |
| Operating Temperature | 0℃~180℃ |
| Differential |
8℃ or more(depend on customer's demand) |
| Endurance | 100,000 cycles |
| Bracket | None |
| Case | PPS |
| Terminal Size | 2.48mm |
| Terminal Orientation | 0° |
| Terminal Material | Copper with tin plated |
| Circuit Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ or more(DC 500V) |
| Dielectric Strength | AC 1,450V for 1 minute |
When using bimetal thermal protector, recommend to choose following wires considering rated current:
| Rated current | ≤3A | ≤5A | ≤7A | ≤12A |
| Traverse area | 0.3 mm² | 0.5 mm² | 0.75 mm² | 1.25 mm² |
| UL wire gauge | AWG22 | AWG20 | AWG18 | AWG16 |
| Rated current | ≤15A | ≤20A | ≤30A | -- |
| Traverse area | 2.0 | 3.5 | 5.5 | -- |
| UL wire gauge | AWG14 | AWG12 | AWG10 |
-- |
3. Common Components of thermal protector could be chosen.
Please refer to below KSD301 Thermostat Specification for some common components' choices.
Kindly share your demand details such as action/reset temperature, cap, bracket, terminal types... with us, so that we can arrange samples to you for verification, provide best pricing.
4. Attentions about Bimetal Thermal Protector installation.
1) During bimetal thermal protector using process, need to avoid moisture and pollution, otherwise it will affect the electrical performance of the product. Recommended working environment is relative humidity ≤90%, no contact with corrosive and flammable things.
2) During installation, need high attention that the temperature-sensitive surface should not be deformed, and the top of the cap should not be collapsed or deformed, so as not to affect the temperature performance and electrical performance of the product.
3) Bimetal thermal protector shall be installed with cap connected with the grounding metal parts or the power grounding wire of the equipment to reduce the electromagnetic radiation and interference signals of the complete machine.
4) During using process, need high attention to avoid cracks caused by the large force on the case inside, and liquid penetrates into the thermostat. Keep the case clean to prevent the insulation performance from decreasing or even short circuit breakdown after the thermostat polluted by the conductive medium.
5. About us.
Light Country was founded in 1985 in Taiwan.
We have been dedicating on bimetal thermal protector and rocker switch.
These parts are widely used in the industry of household, electronics, industrial facilities, medical devices and so on.
They could be customized designed based on end-customers' demand.
To provide customer best service, we’re with integration of design, production, sales and post-sales as well.
We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.
We promise reasonable price, stable quality, timely delivery and superior service.
