Product Details:
|
| Product Name: | Bimetal Thermostat Switch | Operating Temperature: | 0℃~150℃ |
|---|---|---|---|
| Electrical Rating: | 10A 250V | Endurance: | 100,000 Cycles |
| Differential: | 8℃ Or More(depend On Customer) | Circuit Resistance: | 50mΩ Or Less |
| Insulation Resistance: | 100MΩ Or More(DC 500V) | Application: | Integrated Ceiling |
| High Light: | Bimetal KSD301 Thermostat,ksd301 250v 10a 150c,T24 KSD301 Thermostat |
||

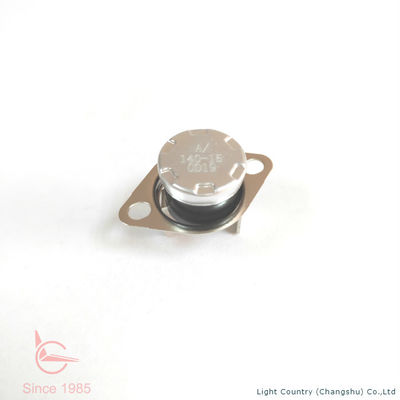

KSD301 Bimetal Thermostat Switch with loose bracket for Integrated Ceiling
We are Taiwan company named Light Country, founded in 1985.
We have been dedicating on Bimetal Thermostat Switch and Rocker switch.
These parts are widely used in household appliance, electrical products, industrial facilities, medical devices, etc.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.
Our factory got ISO9001, ISO14001 and IATF16949 certifcates.
Our products got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive service, effective improvements.
1. Why choose our KSD301 Bimetal Thermostat Switch?
1) High precision, rapid heat transmission, high sensitivity for excellent thermal protection.
2) Good quality, every product will be tested before shipping, extremely high temperature pass rate.
3) Easy mounting.
4) Many choices for components used on KSD301 Bimetal Thermostat, always support customized production.
5) Reasonable cost and excellent service.
2. Parameters and Specification.
| Brand | Light Country |
| Product | KSD301 Bimetal Thermostat Switch |
| Type | Automatic Reset |
| Electrical Rating | 10A 250V |
| Operating Temperature | 0℃~150℃ |
| Differential |
8℃ or more(depend on customer) |
| Endurance | 100,000 cycles |
| Bracket | Loose O type bracket, refer to below specification for more. |
| Case | Phenolic, refer to below specification for more. |
| Circuit Resistance | 50mΩ or less |
| Insulation Resistance | 100MΩ or more(DC 500V) |
| Dielectric Strength | AC 1,450V for 1 minute |
| Application | Integrated Ceiling |
When using thermostat, recommend to choose following wires considering rated current:
| Rated current | ≤3A | ≤5A | ≤7A | ≤12A |
| Traverse area | 0.3 mm² | 0.5 mm² | 0.75 mm² | 1.25 mm² |
| UL wire gauge | AWG22 | AWG20 | AWG18 | AWG16 |
| Rated current | ≤15A | ≤20A | ≤30A | -- |
| Traverse area | 2.0 | 3.5 | 5.5 | -- |
| UL wire gauge | AWG14 | AWG12 | AWG10 |
-- |
If the picture showed product could not meet your demand, please refer to below KSD301 Thermostat Specification, to find the style you want, or share with us your detail requirements, we will support customized production.
3. Attentions about KSD301 Bimetal Thermostat Switch installation.
1) During bimetal thermostat using process, need to avoid moisture and pollution, otherwise it will affect the electrical performance of the product. Recommended thermostat working environment is that relative humidity ≤90%, no contact with corrosive and flammable things.
2) During installation, need high attention that the temperature-sensitive surface should not be deformed, and the top of the cap should not be collapsed or deformed, so as not to affect the temperature performance and electrical performance of the product.
3) During installation, the terminals should not be bent vigorously, and the connections between terminal and wire should be in good contact, otherwise the electrical contact reliability will be affected.
4) During using process, need high attention to avoid cracks caused by the large force on the case inside, and liquid penetrates into the thermostat. Keep the case clean to prevent the insulation performance from decreasing or even short circuit breakdown after the thermostat polluted by the conductive medium.
Thanks for your time, kindly contact us via below ways if anything we can help.
