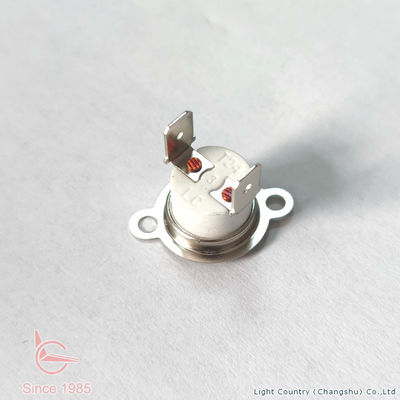

Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers

Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers
Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers
Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers

Large Image :  Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers

Product Details:
Place of Origin: China
Brand Name: LC
Certification: UL, TUV, VDE, CQC
Model Number: T24
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs, could support pilot run Qty.
Price: Negotiable
Packaging Details: Min. Package 1000pcs
Delivery Time: 10~30 days
Payment Terms: T/T
Supply Ability: Daily 50K

Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers

Description
Product Name: KSD301 Thermostat Switch Operating Temperature: 0℃~250℃
Electrical Rating: 16A 250V Case Material: Ceramic
Life Time: 100000 Cycles Circuit Resistance: 50mΩ Or Less
Insulation Resistance: 100MΩ Or More(DC 500V) Dielectrical Strength: AC 1,450V For 1 Min.
Highlight:

KSD301 Thermostat 16A 250V

,

T24 ksd301 temperature switch

,

Ceramic Case KSD301 Thermostat

Manufacturing KSD301 Thermostat Switch with Ceramic Case for Special Fire and Smoke Dampers





We're Taiwan brand Light Country, and we're the manufacturer.

This KSD301 Thermosat Switch is with ceramic case for special fire and smoke dampers.



1. Advantages for KSD301 Thermostat Switch.

1) Hight precision, high sensitivity, rapid heat transmission for fast action.

2) High quality, no breakdown, no flashover.

3) High durability, high loading capacity.

4) Easy mounting.

5) All KSD301 Thermostat Switch will be tested, extremely high temperature pass rate.

6) Many common component choices, always support customized production.



2. Parameters and Specification.

  Company   Taiwan Light Country
  Product   KSD301 Thermostat Switch
  Type   Automomatic Reset
  Electrical Rating   16A 250V
  Operating Temperature    0℃~250℃
  Differential     8℃ or more(depend on customer's demand)
  Endurance    100,000 cycles
  Bracket    Loose U type bracket(refer to below specification for more choices)
  Terminal    Steel with nickel plated
  Case    Ceramic
  Circuit Resistance    50mΩ or less
  Insulation Resistance    100MΩ or more(DC 500V)
  Dielectrical Strength    AC 1,450V for 1 min.



If you find the one you want from the pictures, kindly share with us which one, and tell the action temperature, contact type(normally open or normally closed), or more about your requirement. We will support the best price.



If the picture products could not meet your demand, kindly refer to below simple KSD301 Thermostat Specification. You can choose the style you want, or share with us the details, we will support customization.

Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers 0

Ceramic Case KSD301 Thermostat 16A 250V For Special Fire Smoke Dampers 1



3. Attentions about KSD301 thermostat switch.

1) When select thermostat switch, need to confirm the accurate temperature. To avoid temperature changes caused by thermal inertia, thermal conduction and other factors, need to consider the following factors.

a.Detection part of temperature control.

b. Thickness and material of heat transfer component.

c. The power of the heating element.

d. Amount of heated medium.

e. Ambient temperature and air pressure.



2) During thermostat switch using process, need to avoid moisture and pollution, otherwise it will affect the electrical performance of the product. Recommended thermostat switch working environment is that relative humidity ≤90%, no contact with corrosive and flammable things.



3) During installation, need to make sure the thermostat switch’s temperature-sensing surface to be evenly contacted with the temperature-controlling part, and the force should be evenly applied to stabilize the temperature-sensing. Besides, need to coat the surface of temperature-sensitive with thermal grease or other similar heat-conducting medium.



4. FAQ.

Q1: How can we get a quote?
A: Please offer the specification of the thermostat switch, such as operating temperature, case/bracket style, application, quantity etc.

Picture or drawing are welcome for our reference.

Q2: How can we get a drawing.

A: After confirm the detail specification, we will provide the drawing via E-mail, WhatsApp, Wechat and other ways.

Q3: What is the MOQ?
A: Normally our MOQ is 1000 pcs. Larger quantity could win better price. We can support small quantity for test or pilot run purpose.

Q4: What about the lead time?
A: For KSD301 Thermostat switch sample making, it usually takes around 7 days.

      Lead time would be 10~20days with long term forecast.

      Estimated lead time would be around 30days without forecast.

      We will try best to support to shorten the lead time if any urgent order.
Q5: Which payment terms you can accept?
A: T/T or pay via PayPal in advance, could talk based on customer actual status.
Q6: Guarantee?
A: We offer 1 year guarantee.

Q7: Package carton dimension.

A: For 1000pcs, use 38*29*25mm carton.

For 2000pcs, use 56*38*25mm carton.

For 2000pcs, use 41*30*21mm carton.

Q8: Express or Forwarder for delivery.

A: Customer could assign a express or forwarder for delivery, or we ask our source to do it if customer think it is more cost-saving.



5. About us.

Light Country Co., Ltd. was founded in 1985 in Taiwan.

We dedicate on KSD301 thermostat switch and rocker switch.These switches are widely used in household appliance, electrical products, office equipment, industrial facilities, medical devices and so on. They could be customized designed based on end-customer's demand.

To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.

We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.

We promise reasonable price, stable quality, timely delivery and superior service.
