Product Details:
|
| Product Name: | KSD301 Thermostat | Operating Temperature: | 100000 Cycles |
|---|---|---|---|
| Differential: | 8℃ Or More | Electrical Rating: | 16A 250V, 15A 125V, 10A 250V |
| Height: | 9.6mm, 12.4mm | Circuit Resistance: | 50mΩ Or Less |
| Insulation Resistance: | 100MΩ Or More(DC 500V) | Type: | Automatic Reset |
| High Light: | KSD301 snap disc thermostat,Bimetal snap disk thermostat switch,Bimetal snap disc thermostat |
||

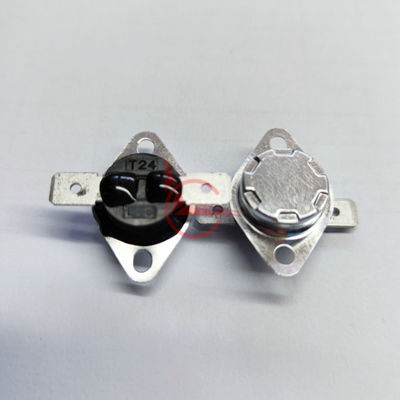

KSD301 Bimetal Snap Action Thermostat with Waterproof function and Customized Bracket
1. Why choose KSD301 Waterproof Bimetal Snap Action Thermostat?
1) With Waterproof function to keep the thermostat in good condition.
2) Rapid heat transmission, hight sensitivity for thermal protection.
3) High precision, no breakdown, no flash over.
4) Easy mounting. Components' style could be customized to fulfill customers' demand.
5) Every product will be tested, extremely high temperature pass rate.
2. Parameters.
| Brand | Light Country |
| Product | KSD301 Waterproof Temperature Control Switch |
| Model | T23, T24 |
| Type | Automatic Reset |
| Electrical Rating | 10A/125V AC |
| Operating Temperature | 0℃~180℃ |
| Endurance | 100,000 cycles |
| Height | 9.6mm, 12.4mm |
| Bracket | Could choose or customized(refer to the simple specification as below) |
| Terminal | Could choose or customized(refer to the simple specification as below) |
| Case | PPS, Phenolic |
| Circuit Resistance | 50mΩ or less |
| Insulation Resistance | 100MΩ or more(DC 500V) |
When using thermostat, recommend to choose following wires considering rated current:
| Rated current | ≤3A | ≤5A | ≤7A | ≤12A |
| Traverse area | 0.3 mm² | 0.5 mm² | 0.75 mm² | 1.25 mm² |
| UL wire gauge | AWG22 | AWG20 | AWG18 | AWG16 |
| Rated current | ≤15A | ≤20A | ≤30A | -- |
| Traverse area | 2.0 | 3.5 | 5.5 | -- |
| UL wire gauge | AWG14 | AWG12 | AWG10 | -- |
If the picture products are not what you want, please refer to below KSD301 Thermostat Specification, you can choose the style you want, or share with us your requirements, we will support customization.
3.Attentions about KSD301 thermostat installation.
1). When select thermostat, need to confirm the accurate temperature. To avoid temperature changes caused by thermal inertia, thermal conduction and other factors, need to consider the following factors.
a. Detection part of temperature control.
b. Thickness and material of heat transfer component.
c. The power of the heating element.
d. Amount of heated medium.
e. Ambient temperature and air pressure.
2) During installation, need to make sure the thermostat’s temperature-sensing surface to be evenly contacted with the temperature-controlling part, and the force should be evenly applied to stabilize the temperature-sensing. Besides, need to coat the surface of temperature-sensitive with thermal grease or other similar heat-conducting medium.
3) During installation, the terminals should not be bent vigorously, and the connections between terminal and wire should be in good contact, otherwise the electrical contact reliability will be affected.
4. About us.
Light Country Co., Ltd. was founded in 1985 in Taiwan.
Our main products are thermostat, rocker switch, push button switch, water-proof switch, photoelectric switch, slide switch and rolling-ball vibration switch. These parts are widely used in household appliance, electrical products, office equipment, industrial facilities, medical devices and so on. They could be customized designed based on end-customer's demand.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.
We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.
We promise reasonable price, stable quality, timely delivery and superior service.
