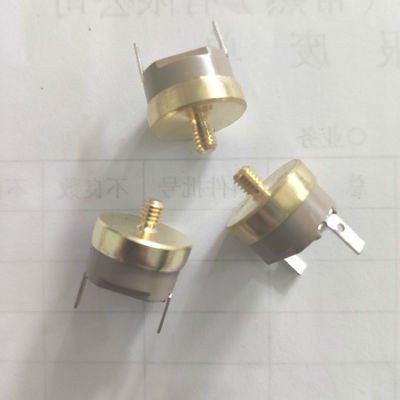

Round Screw Copper Cap Automatic Reset T24 KSD301 Bimetal Disc Thermostat

Round Screw Copper Cap Automatic Reset T24 KSD301 Bimetal Disc Thermostat
Round Screw Copper Cap Automatic Reset T24 KSD301 Bimetal Disc Thermostat
Round Screw Copper Cap Automatic Reset T24 KSD301 Bimetal Disc Thermostat Round Screw Copper Cap Automatic Reset T24 KSD301 Bimetal Disc Thermostat Round Screw Copper Cap Automatic Reset T24 KSD301 Bimetal Disc Thermostat

Large Image :  Round Screw Copper Cap Automatic Reset T24 KSD301 Bimetal Disc Thermostat

Product Details:
Place of Origin: China
Brand Name: LC
Certification: UL, TUV, VDE, CQC
Model Number: T24
Payment & Shipping Terms:
Minimum Order Quantity: 1000ea
Price: Negociable
Packaging Details: Min. Package 1000pcs
Delivery Time: 35 days
Payment Terms: T/T
Supply Ability: 1 Million monthly

Round Screw Copper Cap Automatic Reset T24 KSD301 Bimetal Disc Thermostat

Description
Manufacturer: Light Country Product Name: KSD301 Automatic Reset Bimetal Thermostat
Current: 10A, 15A, 16A Voltage: 125V, 250V
Working Temperature: 0℃~150℃ Function: Overheat Protection
Lifetime: 100000 Factory Approvals: ISO9001, ISO14001, IATF16949
High Light:

KSD301 Bimetal Disc Thermostat

,

KSD301 bimetal temperature control switch

,

T24 Bimetal Disc Thermostat

LC T24 KSD301 Automatic Reset Bimetal Thermostat with Round Screw Copper head Cap





Light Country Co., Ltd. was founded in 1985 in Taiwan, Dongguan branch built in 1997, Changshu site in 2004.

We dedicate on switch. Our main products are thermostat, rocker switch, push button switch, water-proof switch, photoelectric switch, slide switch and rolling-ball vibration switch. These parts are widely used in household appliance, electrical products, office equipment, industrial facilities, medical devices and so on. They could be customized designed based on end-customer's demand.

To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well. We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.

We promise reasonable price, stable quality, timely delivery and superior service.



1. Parameters.

  Manufacturer   Light Country
  Product   KSD301 Thermostat
  Type   Automatic Reset
  Electrical Rating   15A 125V
  Operating Temperature   0℃~250℃
  Differential    8℃ or more
  CAP   Screw Copper Head
  Bracket   Mounting Round type
  Terminal Orientation   0°, 90°, could choose based on below data or follow customer's requirements.
  Terminal Material   Copper with tin plated, could choose or do customized production.
  Terminal Size   4.75mm, 6.35mm...
  Circuit Resistance   50mΩ or less
  Insulation Resistance   100MΩ or more(DC 500V)



When using thermostat, recommend to choose following wires considering rated current:

Rated current ≤3A ≤5A ≤7A ≤12A
Traverse area 0.3 mm² 0.5 mm² 0.75 mm² 1.25 mm²
UL wire gauge AWG22 AWG20 AWG18 AWG16
Rated current ≤15A ≤20A ≤30A --
Traverse area 2.0 3.5 5.5 --
UL wire gauge AWG14 AWG12 AWG10 --



2. Simple specification for some common component choices.

You can find whether there is ones you want, or share with us your details requirements, we will support customized production.

Round Screw Copper Cap Automatic Reset T24 KSD301 Bimetal Disc Thermostat 0

Round Screw Copper Cap Automatic Reset T24 KSD301 Bimetal Disc Thermostat 1



3. Advantages for KSD301 bimetal thermostat.

 1). Easy mounting.

 2). Rapid heat transmission and high sensitivity.

 3). High precision without breakdown, no flashover.

 4). High durability, high loading capacity.

 5). Every product would be tested, extremely high temperature pass rate.



4. FAQ.

Q1: How can we get a quote?
A: Please offer the specification of the product, such as operating temperature, case/bracket style, application, quantity etc. Picture or drawing are welcome for our reference.

Q2: How can we get a drawing.

A: After confirm the detail specification, we will provide the drawing via E-mail, WhatsApp, Wechat and other ways.
Q3: What about the lead time?
A: For KSD301 Thermostat sample making, it usually takes around 7~10 days. As for purchase order production, lead time would be around 35 days. We will try best to support to shorten the lead time if any urgent order.
Q4: Guarantee?
A: We offer at least1 year guarantee.

Q5: Package carton dimension.

A: For 1000pcs, use 38*29*25mm carton.

For 2000pcs, use 56*38*25mm carton.

For 2000pcs, use 41*30*21mm carton.

Q6: Express or Forwarder for delivery.

A: Customer could assign a express or forwarder for delivery, or we ask our source to do it if customer think it is more cost-saving.
