Product Details:
|
| Manufacturer: | Light Country(Changshu) Co., Ltd. | Switch Name: | Round Waterproof Power Switch |
|---|---|---|---|
| Switch Function: | ON-OFF | Current-Voltage: | 6A/10A 250V AC, 15A 125V AC |
| Diameter: | Φ 20mm | Life Cycle: | 10,000 Cycles |
| Highlight: | waterproof push switch,waterproof round rocker switch |
||

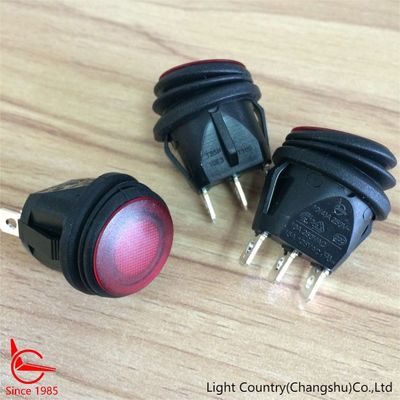

Easy installation round waterproof power switch, φ 20mm, with red light, >10,000 life cycles.
1. Light Country Introduction.
Light Country was founded in 1985. Headquater is in Taiwan, and two factories located in Changshu and Dongguan, China.
We have been dedicated in Power Switch and Bimetal Thermostat.
These parts are generally used in household appliance, industrial equipment, medical device and so on.
To provide customer best service, we combine research, design, production, sales and service together.
Our factories already got ISO9001, ISO14001, IATF16949 certificates.
Our Rocker Switch and Bimetal Thermostat got UL, VDE, TUV, SEMKO, NEMKO and CQC certificates, comply with ROHS/REACH regulations.
We always put customer's satisfaction in the first place, and deserve all the trust.
2. Light Country RC Round Power Switch Specification.
| Power Switch Brand | Light Country |
| Electrical rating | 6A/10A 250V AC, 10A/15A 125V AC |
| Installation Hole Size | Φ 20mm |
| Power Switch Function | ON-OFF |
| Additional Function | Waterproof |
| Electrical lifecycle | >10,000 times |
| Housing Color | Red(More are available, please contact us.) |
| Housing Material | PA66 |
| Button Color | Black(More are available, please contact us.) |
| Button Material | PA66/PC |
| Contact Material | Silver alloy |
| Terminal material | Copper with Silver plated |
| Dielectric Strength | >1500V/minute |
| Contact resistance | <20mΩ(initial) |
| Insulation resistance | ＞1000MΩ(500V DC between open contacts) |
| Ambient temperature | －10℃~ +85℃ |
| Flammability | UL 94V-2 |
| Solder ability of terminal | Max 350℃ 3s(no pressure can be placed on terminals when soldering by hand.) |
3. Light Country RC Round Power Switch function options.
|
Item No |
Poles& Throws |
Rocker position | ||
| Left | Center | Right | ||
| RC9 | SPST with lamp | ON | None | OFF |
4. Light Country RC Round Power Switch Dimension.
5. Light Country RC Round Power Switch Terminal Types.
6. Circuits of RC Round Power Switch Lamp.
7. RC Round Power Switch LED Specification(t=25℃).
| SYMBOL | LED PARAMETERS | UNIT | |||
| LED COLOR | Green | Red | Yellow | ||
| Peak forward current | IFM | 30 | 30 | 30 | mA |
| Ave forward current | IF | 20 | 20 | 20 | mA |
| Forward voltage | VF | 3 | 3 | 3 | V |
| Reverse voltage | VR | 5 | 5 | 5 | V |
| Emission wavelength | λR | 571 | 630 | 590 | nm |
| Luminous intensity | IV | 4.25 | 5.10 | 3.40 | mcd |
| Operating temperature | -40~85 | ℃ | |||
