|Factory Name:||Light Country(Changshu)Co.,Ltd||Electrical Rating:||25A 250V AC, 25A 125V AC.|
|Switch Function:||ON-OFF||Additional Function:||Water-resistant And Red Illuminated|
|Electrical Life Endurance:||10,000 Cycles|
waterproof round rocker switch,
waterproof electrical switches

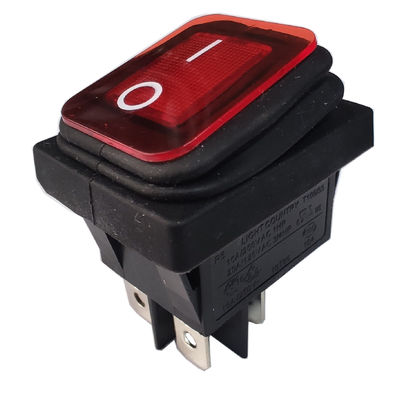

1. R5 Water-resistant Power Switch Specification.
|Manufacturer||Light Country(Changshu) Co.,LTD|
|Model||R5 water-resistant power switch|
|Electrical rating||20A 250V AC, 20A 125V AC|
|Mounting hole Size||30*22mm|
|Electrical life endurance||10,000 cycles|
|Safely approval||UL, CUL, VDE, ENEC, CQC|
|Lamp voltage||3V, 4V, 6V, 12V, 24V, 36V, 48V, 72V, 125V, 250V are available.|
|Contacts Material||Silver alloy|
|Terminal Material||Brass with silver plated|
|Fire rating||UL 94V-2. UL 94V-0.|
|Solder ability of terminal||Max 350℃ 3S, do not apply pressure to the terminal when soldering by hand.|
2. How to order R5-7 water-resistant power switch?
Power switch is a highly customized product, different customer might have different demand on switch function, mechanical appearance, installation method, lamp color, lamp voltage and so on. Please refer to the normal choices as below, and share with us your demand. We always open mind to support customer for new design.
1) R5 water-resistant power switch function.
2) R5 water-resistant power switch dimension.
3) R5 water-resistant power switch lamp circuit.
4). If R5 water-resistant power switch could not meet your demand, please refer to below simple specification to find all our rocker switch common types, and check if anyone could fulfill your demand, kindly share your specification or product pictures if you need new design support from us.
3. About us.
Light Country was founded in 1985 in Taiwan.
We dedicate on power switch and thermostat.
These parts are widely used in household appliance, electrical products, industrial facilities, medical devices, etc.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive service, effective improvements.
