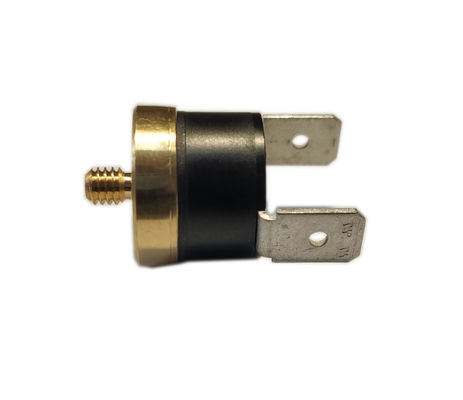

50mΩ Automatic Reset Thermostat T24-RR2-TB AC 1450V For 1 Min Copper CAP

50mΩ Automatic Reset Thermostat T24-RR2-TB AC 1450V For 1 Min Copper CAP
50mΩ Automatic Reset Thermostat T24-RR2-TB AC 1450V For 1 Min Copper CAP 50mΩ Automatic Reset Thermostat T24-RR2-TB AC 1450V For 1 Min Copper CAP

Large Image :  50mΩ Automatic Reset Thermostat T24-RR2-TB AC 1450V For 1 Min Copper CAP

Product Details:
Place of Origin: China
Brand Name: LC
Certification: UL, CUL, VDE, ENEC
Model Number: T24-RR2-TB
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 35 days
Payment Terms: T/T
Supply Ability: 10,000pcs per day

50mΩ Automatic Reset Thermostat T24-RR2-TB AC 1450V For 1 Min Copper CAP

Description
Circuit Resistance: 50mΩ Or Less Product Name: Automatic Reset Thermostat
Insulation Resistance: 100MΩ Or More(DC 500V) Dielectric Strength: AC 1,450V For 1 Min.
Case Material: PPS(P) Terminal Orientation: 0°/30°/45°/60°/90°
Differential: 8℃ Or More Type: Single Pole - Single Throw
High Light:

ksd301 thermal switch

,

ksd301 temperature switch

50mΩ Automatic Reset Thermostat T24-RR2-TB AC 1450V For 1 Min Copper CAP





The most versatile Automatic Reset KSD301 thermostats.

A wide range of temperature,low temperature till high temperature,can be set according to customer requirements.

Cap/Case material,Bracket type/Terminal Orientation/Terminal Size could be customized based on actual demand. See the bottom for details.





Type: Single pole - single throw

T24 series thermoistat Height: 12.4mm(T23 series is 9.6mm)



Operating temp:
UL/CUL: 0℃~250℃
TUV: 0℃~220℃
CQC: 50℃~250℃



Differential: 8℃ or more(depend on customer's demand.)



CAP/Bracket Material: Aluminum/Stainless steel/Copper



Terminal Orientation: 0°/30°/45°/60°/90°



Terminal Size:4.75mm(0.187inch)/6.35mm(0.25inch)



Case Material: Phenolic(T)/PPS(P)/Ceramic(C)



Electrical Rating:
16A/250V AC Resistive load
15A/125V AC Resistive load
10A/250V AC Resistive load



Temp Tolerance: ±3℃ or more, Standard: ±3℃ ~ ±12℃(depend on customer required operating Temp)



Endurance: 100,000 cycles or more



Circuit Resistance: 50mΩ or less



Insulation Resistance: 100MΩ or more(DC 500V)

Dielectric Strength: AC 1,450V for 1 min.



Current bracket/Terminal types and case material options are as below. We would like to cooperate customer for new design.
