Product Details:
|
| Safely Approval: | UL, CUL, VDE, ENEN | Electrical Rating: | 10A 250V AC, 15A 125V AC |
|---|---|---|---|
| Mechanical Life Endurance: | 30,000 Cycles | Electrical Life Endurance: | 10,000 Cycles |
| Contract Resistance: | <20mΩ | Insulation Resistance: | ＞1000MΩ |
| Ambient Temperature: | T85/T105 | Fire Rating: | UL 94V-2. UL 94V-0. Glow-wire, Needle Flame Test |
| Material Of Housing: | PA66 | Material Of Contacts: | Silver Alloy |
| High Light: | waterproof round rocker switch,waterproof electrical switches |
||

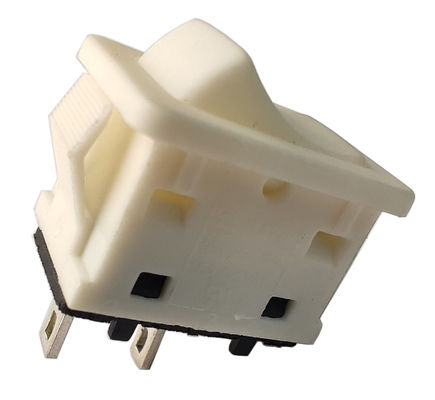

RAWP Waterproof Thermostat Silver Alloy Material Of Contacts T85/T105 Ambient Temperature
RAWP Series Specification
Safely approval: UL, CUL, VDE, ENEN
Electrical rating: 10A 250V AC, 15A 125V AC
Mechanical life endurance: 30,000 cycles
Electrical life endurance: 10,000 cycles
Contract resistance: <20mΩ
Insulation resistance: ＞1000MΩ
Ambient temperature: T85/T105
Fire rating: UL 94V-2. UL 94V-0. Glow-wire, needle flame test.
Material of housing: PA66
Material of contacts: Silver alloy
Material of terminal: Copper silver plated
Solder ability of terminal: Max 350℃ 3S, do not apply pressure to the terminal when welding by hand.
Part number cording rule: Choices of switch function, Housing color, Actuator color, Marking, Terminal type can be found here.
Switch function option.
| Item No |
Poles& Throws |
Rocker position | ||
| Left | Center | Right | ||
| RAWP1 | SPST | ON | None | OFF |
| RAWP2 | SPDT | ON | None | ON |
| RAWP5 | SPST | (ON) | None | OFF |
| RAWP7 | SPST | ON | None | (OFF) |
Panel cut out.
| Panel cut-out | ||
| Z | Y | X |
| 0.7~1.25[.028~.049] | 12.8~12.9[.504~.508] | 19.2~19.3[.756~.760] |
| 1.25~2.0[.049~.079] | 12.8~12.9[.504~.508] | 19.3~19.4[.760~.764] |
| 2.0~3.0[.079~.118] | 12.8~12.9[.504~.508] | 19.5~19.6[.768~.772] |
Dimension
