Product Details:
|
| Voltage: | 250V | Current: | 16A |
|---|---|---|---|
| Size: | Φ16.1, Height 12.4 | Control Accuracy: | ±3℃ |
| Life: | ＞100,000 Times | Action Temperature: | 100℃ |
| High Light: | Stainless steel Cap KSD301 Thermal Switch,High Accuracy Bimetal Thermal Switch,Manual Reset Bimetal Thermal Switch |
||

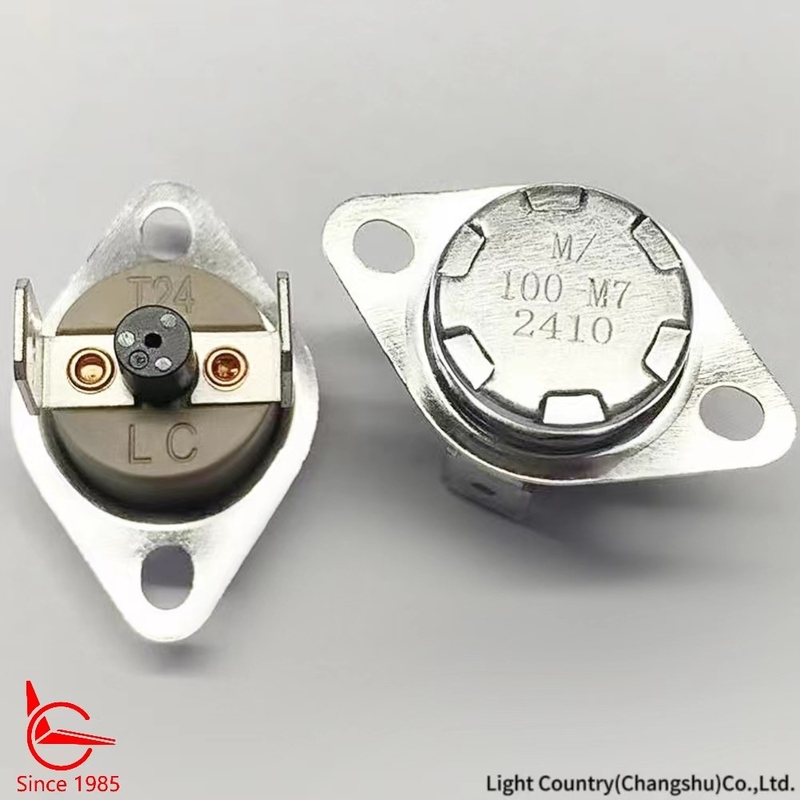

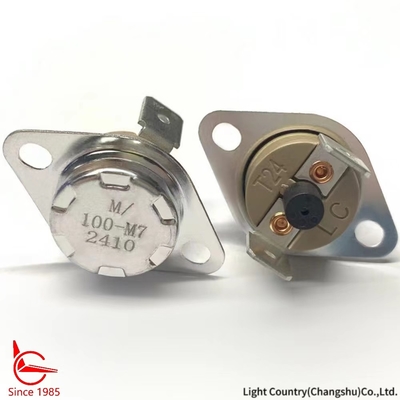

High Accuary Bimetal Thermal Switch, Manual Reset, Height 12.4, Φ16.1
1. About thermal switch manufacturer Light Country.
Light Country was founded in 1985 in Taiwan.
We’re with integration of R&D, production, sales and post-sales as well, to provide fast respond service and best price.
We dedicate on bimetal thermal switch and rocker switch for around 38 years.
These switches are widely used in household appliance, office equipment,beauty industry, medical devices and so on.
They could be highly custom designed and produced according to customer's requirements.
We promise reasonable price, stable quality, timely delivery and superior service.
2. Advantages of our Bimetal Thermal Switch.
1) Flexible design and production to fulfill customer's different installation requirements.
2) High precision, high sensitivity with 100% output inspection for excellent thermal production and temperature control.
3) Reasonable price and best considerate service.
3. Manual Thermal Switch Parameters and Specification.
| Factory name | Light Country(Changshu)Co.,Ltd. |
| Product | Bimetal Thermal Switch |
| Model | T24 |
| Type | Manual Reset |
| Electrical Rating | 16A/250V, 15A/125V, 10A/250V |
| Temperature range | 0℃~250℃ |
| Differential | 8℃ or more, depend on customer's demand. |
| Cap | Stainless steel |
| Case | PPS |
| Terminal | Brass with tin plated, 90°. |
| Circuit Resistance | ≤50mΩ |
| Insulation Resistance | 100MΩ min. at DC 500V |
| Dielectric Strength | AC 1250V for one minute. |
| Operating Life | ＞100,000 cycles |
| Factory Certificate | ISO9001, ISO14001, IATF16949 |
4. Attentions about Manual Bimetal Thermal Switch installation.
1) During installation, need high attention that the temperature-sensitive surface should not be deformed, and the top of the cap should not be collapsed or deformed, so as not to affect the temperature performance and electrical performance of the product.
2) During installation, the terminals should not be bent vigorously, and the connections between terminal and wire should be in good contact, otherwise the electrical contact reliability will be affected.
3) Bimetal Thermostat shall be installed with cap connected with the grounding metal parts or the power grounding wire of the equipment to reduce the electromagnetic radiation and interference signals of the complete machine.
5. FAQ.
Q1: How can we get a quote?
A: Please offer the demand details for thermal switch, such as operating temperature, case/bracket/terminal, application,etc.
Picture or drawing are welcome for our reference.
Q2: What about the lead time?
A: Less than 7 days for thermal switch sample production.
Around 10~20 days with long term forecast.
Around 20~30 days without forecast.
We will try best to support to shorten the lead time if any urgent order.
Q3: Delivery.
A: We prefer EXW term, but we can ask our forwarder source for transport if customer need.
