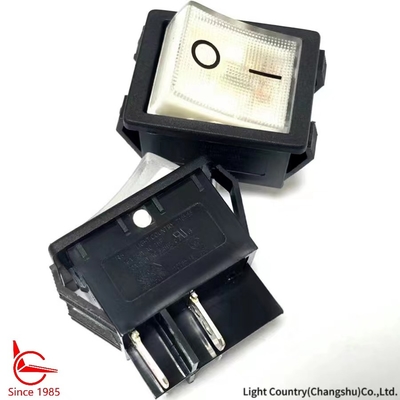

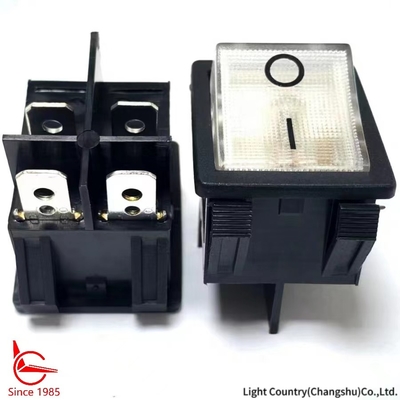

Good Quality White Illuminated Rocker Switch for Socket, 32*25mm, 16A 250V, ON-OFF, VDE/TUV/UL
1. About us.
Our company name is Light Country, headquarter is in Taiwan.We have two production factories.
We have been dedicating on rocker switch and thermal switch for more than 35 years.
These parts are widely used in welding machines/tools, industrial facilities, medical devices, etc.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.
Our switches already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
We promise good quality, timely delivery, considerate service and effective improvements.
2. R5 white illuminated Rocker Switch Specification.
| Manufacturer |
Light Country(Changshu) Co.,LTD |
| Model |
R5 illuminated Rocker Switch |
| Electrical rating |
16A/20A/25A 250V AC, 20A 125V AC |
| Panel cut-out |
32*25mm |
| Mounting hole Size |
30*22mm |
| Mechanical life endurance |
30,000 cycles |
| Electrical life endurance |
10,000 cycles |
| Safely approval |
UL, CUL, VDE, ENEC, CQC |
| Housing color |
Black, contact us for more color options. |
| Actuator color |
Transparent, whatsapp us for more color options. |
| Lamp color |
White, email us for more options. |
| Lamp voltage |
250V, depend on customer's demand, 12V, 24V, 48V, 36V, 72V are available too. |
| Housing Material |
PA66/PC |
| Contacts Material |
Silver alloy |
| Terminal Material |
Brass with silver plated |
| Contract resistance |
<20mΩ |
| Insulation resistance |
>1000MΩ |
| Ambient temperature |
T85/T105 |
| Fire rating |
UL 94V-2. UL 94V-0. |
| Solder ability of terminal |
Max 350℃ 3S, do not apply pressure to the terminal when soldering by hand. |
3. How to order R5 illuminated Rocker Switch?
Rocker switch is a highly customized product, different customer might have different specifications on switch function, mechanical appearance, installation method, Lamp voltage and so on. Please refer to the normal choices as below, and share with us your demand. We always open mind to support customer for new design.
1) R5 illuminated rocker switch function option.
|
Item
No.
|
Poles/
Throws
|
Rocker position |
| Left |
Center |
Right |
| R59 |
DPST(with lamp) |
ON |
None |
OFF |
2) R5 big current rocker switch dimension.
3) If R5 illuminated rocker switch could not meet your demand, please refer to below specification summary to find all our rocker switch types, and check if anyone could meet your demand, kindly share your specification or product pictures if you need new design support from us.
