Product Details:
|
| Factory: | Light Country(Changshu) Co.,Ltd. | Product Name: | Rocker Switch |
|---|---|---|---|
| Funtion: | ON-OFF, To Be Customized. | Safely Approvals: | UL, CUL, VDE, ENEC, CQC |
| Electrical Life Endurance: | ＞10,000 Cycles | Contract Resistance: | <20mΩ |
| Material Of Housing: | PA66/PC | Material Of Contacts: | Silver Alloy |
| Material Of Terminal: | Copper Silver Plated | ||
| Highlight: | rocker button switch,on off rocker |
||

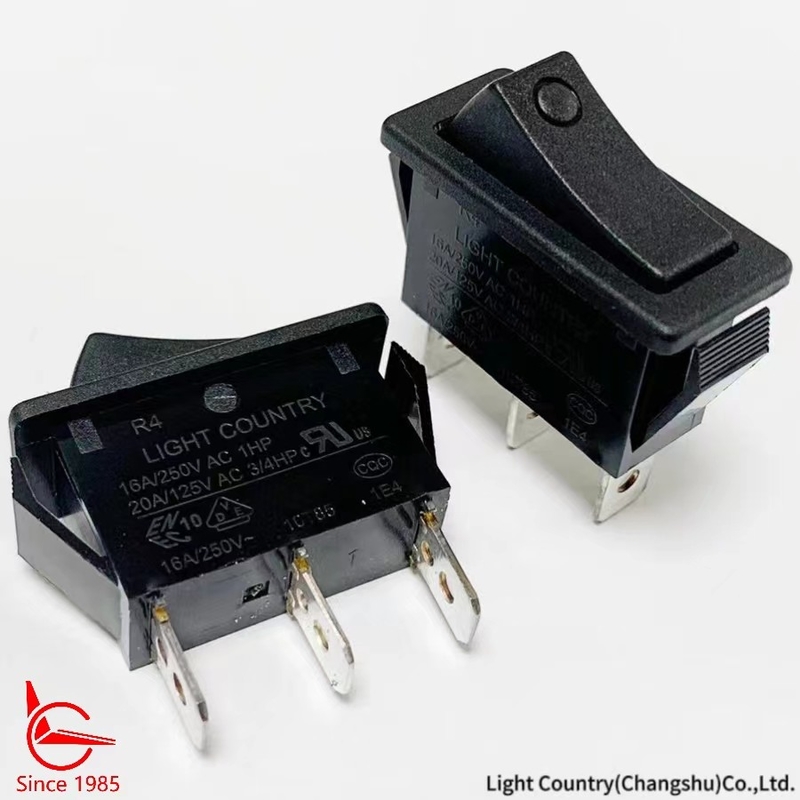

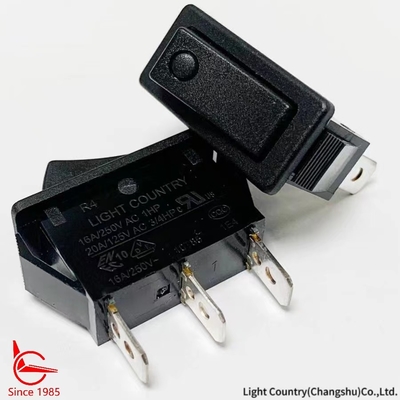

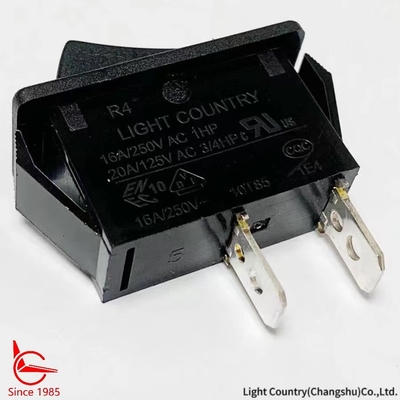

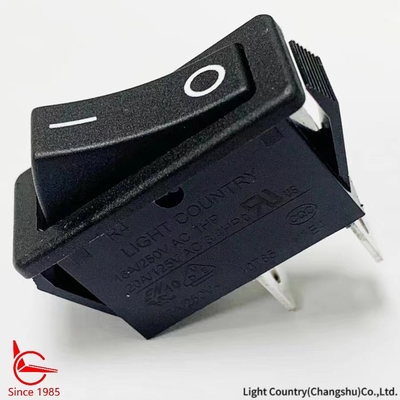

Taiwan Light Country R4 Black ON OFF Rocker Switch 33*15mm 16A 250V
1. About us.
Light Country was founded in 1985 in Taiwan.
We have been dedicated on rocker switch and thermostat since factory built.
These parts are widely used in domestic appliance, electrical products, industrial facilities, medical devices, etc.
To provide best service, we’re with integration of RD, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
We promise reliable products, timely delivery, attentive service, effective improvements.
2. R4 Black On-Off Rocker Switch Technical Data.
| Manufacturer | Light Country(Changshu)Co.,Ltd |
| Electrical rating | 16A 250V AC, 20A 125V AC |
| Product Size | 33*15mm |
| Installation Hole Size | 30*11mm |
| Mechanical life endurance | 30,000 cycles |
| Electrical life endurance | 10,000 cycles |
| Housing Color | Black(More colors are available, depend on customer's demand.) |
| Housing Material | PA66 |
| Rocker Color | Black(More colors are available, depend on customer's demand.) |
| Rocker Material | PA66/PC |
| Contacts | Silver alloy |
| Terminals | Brass with silver plated |
| Dielectric Strength | >1500V/minute |
| Contract resistance | <20mΩ |
| Insulation resistance | ＞1000MΩ(500DC between open contacts) |
| Ambient temperature | －10℃~ 85℃ |
| Storage temperature | －10℃~ 85℃ |
| Actuating force | 3~8N(depend on different switch functions) |
| Flammability | UL 94V-2, glow-wire, needle flame test |
| Solder ability of terminal | Max 350℃ 3s(no pressure can be placed on terminals when soldering by hand.) |
3. R4 Rocker Switch Function Options.
|
Item No |
Poles& Throws |
Rocker position | ||
| Left | Center | Right | ||
| R41 | SPST | ON | None | OFF |
| R42 | SPDT | ON | None | ON |
| R43 | SPDT | ON | OFF | ON |
| R44 | SPDT | ON | None | (ON) |
| R45 | SPST | (ON) | None | OFF |
| R46 | SPDT | (ON) | OFF | (ON) |
| R47 | SPST | ON | None | (OFF) |
| R48 | SPDT | ON | OFF | (ON) |
| R49 | SPST with LED | ON | None | OFF |
4. R4 On-Off Rocker Switch Panel Cut-out.
5. R4 ON-OFF Rocker Switch Dimension.
6. More rocker switch models.
If you want more rocker switch models, please refer to below rocker switch specification.
We will appreciate if product picture or specification details could be shared for quickly checking.
