Product Details:
|
| Power Supply Voltage: | AC 220V 50Hz | Power Consumption: | ≤3W |
|---|---|---|---|
| Display Range: | 0.000〜9999 | Accuracy: | 0.1%RD |
| Working Environment: | 0～50℃ (no Condensation) ≤85% RH | Respond Speed: | About 0.5S |
| High Light: | 1loop Alarm Output Frequency Tachometer,LED Display Frequency Tachometer,AC 220V 50Hz Frequency Tachometer |
||

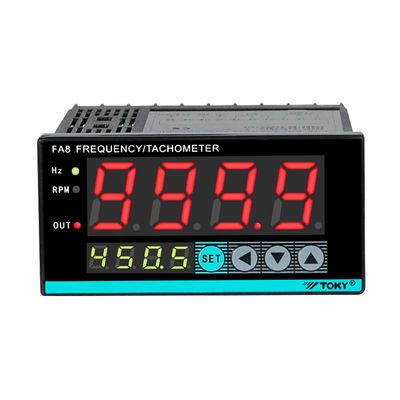

FA Frequency meter Tachometer Linear speed meter High Accuracy LED display 1loop alarm output
1. Features and advantages:
a). Big LED display.
b). High accuacy.
c). Pulse signal/high-voltage industrial frequency signal input.
d). Frequency/line speed/tacho measuring is selectable.
e). One alarm relay output function.
f). Input signal is specially filtered, which improves anti-clutter ability.
2. Model specification:
3. Technical parameter:
| Function | To measure frequency or tacho |
| Input mode | Frequency/Tacho:L:0〜2V, H:5〜30VDC AC Frequency:60〜450VAC |
| Measuring range | Frequency:0.1〜5000Hz；AC Frequency:0. 1〜1000Hz；Tacho:6〜9999RPM |
| Measuring accuracy | ±0.1% (25℃土5℃) |
| Power consumption | ≤3VA |
| Input impedance | FA8-**10≥10KΩ, FA8-**10H≥300KΩ |
| Decimal point | Frequency/AC Frequency:00.00〜0000 (Float decimal point), Tacho:No decimal point |
| Respond speed | About 0.5S |
| Display range | 0.000〜9999 |
| Operating humidity | ≤85% RH |
| Operating temperature | 0〜50℃ |
| Power supply | AC 220V 50Hz |
| Sensor power supply | DC18V土5V |
| Weight | 350g |
| Insulation strength | AC 2000V 1min |
| Insulation impedance | DC 500V ≥100MΩ |
4. Appearance and installation dimensions:
5. Connections:
