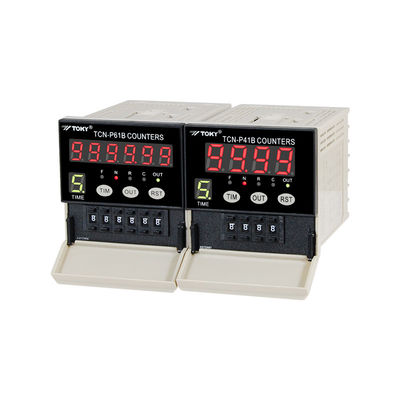

TCN series Digital Counter Meter High Accuracy Display Delay Time Independently

TCN series Digital Counter Meter High Accuracy Display Delay Time Independently
TCN series Digital Counter Meter High Accuracy Display Delay Time Independently

Large Image :  TCN series Digital Counter Meter High Accuracy Display Delay Time Independently

Product Details:
Place of Origin: China
Brand Name: Toky
Certification: CE
Model Number: TCN series
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Carton
Delivery Time: 14days
Payment Terms: T/T

TCN series Digital Counter Meter High Accuracy Display Delay Time Independently

Description
Power Supply Voltage: AC 220V±10% 50/60Hz Power Consumption: ≤4W
Display Range: 0.01~999999(6digits);0.001~9999(4digits) Delay Time: 0.2~15s
Working Environment: -10~50℃ (no Condensation) Sampling Rate: ≤1000Hz
High Light:

TCN Digital Counter Meter

,

4W Electrical Counter Meter

,

AC220V Electrical Counter Meter

TCN multifuction digital count meter, high accuracy and anti-interference capability, display delay time independently



1. Features and advantages:

a). Dial switch setting, visual and easy to operate.

b). Display delay time independently, output with indicator light.

c). Use high-performance microprocessor as controll kernal.

d). High accuracy and anti-interference capability.

e). Widely applied in packaging, statistics, section cutting and many other industries.



2. Model specification:
TCN series Digital Counter Meter High Accuracy Display Delay Time Independently 0
3. Technical parameter:

Power supply AC 220V±10% 50/60Hz
Total consumption ≤4W
Relay contact capacity AC 250V 3A(resistance loading)
Auxiliary voltage DC12V±10%(≤60mA)
Input impedance 5.4KΩ
Counting speed ≤1000Hz
Counting range 0.01~999999(6digits);0.001~9999(4digits)
Delay time 0.2~15s
Output mode F/N/R/C
Working environment -10~50℃(no condensation)
Storage environment -25~65℃(no condensation)
Dielectric strength 2000VAC 50/60Hz
Insulation impedance ≥100MΩ(at 500VDC)
Pulse anti-interference level 2, ±2000Vp-p
Lightning surge level 3, line to line ±2000V
Frequency drop level 3


4. Appearance and installation dimensions:

TCN series Digital Counter Meter High Accuracy Display Delay Time Independently 1

5. Connections:
TCN series Digital Counter Meter High Accuracy Display Delay Time Independently 2
