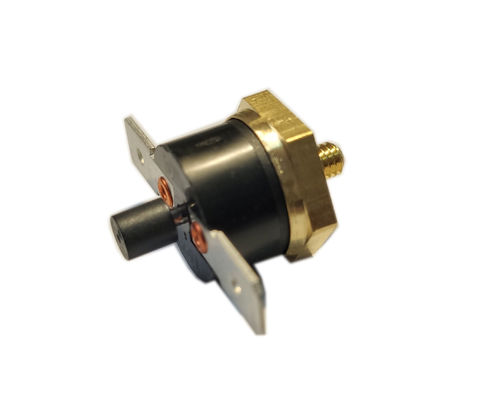

PPS Case Manual KSD301 Temperature Switch T24M-HF2-TB Electric Kettle Stable

PPS Case Manual KSD301 Temperature Switch T24M-HF2-TB Electric Kettle Stable
PPS Case Manual KSD301 Temperature Switch T24M-HF2-TB Electric Kettle Stable

Large Image :  PPS Case Manual KSD301 Temperature Switch T24M-HF2-TB Electric Kettle Stable

Product Details:
Place of Origin: China
Brand Name: LC
Certification: UL, CUL, VDE, ENEC
Model Number: T24M-HF2-TB
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 35 days
Payment Terms: T/T
Supply Ability: 10,000pcs per day

PPS Case Manual KSD301 Temperature Switch T24M-HF2-TB Electric Kettle Stable

Description
Circuit Resistance: 50mΩ Or Less Product Name: Manual Reset Thermostat
Insulation Resistance: 100MΩ Or More(DC 500V) Dielectric Strength: AC 1,450V For 1 Min.
Case Material: PPS(P) Terminal Orientation: 0°/30°/45°/60°/90°
Differential: 8℃ Or More Type: Single Pole - Single Throw
High Light:

disc thermostat

,

snap disk thermostat switch

T24M-HF2-TB Manual Reset Thermostat 50mΩ Circuit Resistance AC 1450V For 1 Min.





The most versatile Menual reset KSD301 thermostats.

A wide range of temperature,low temperature till high temperature,can be set according to customer requirements.





APPLICATION:

Air conditioner,Refrigerator,Water Heater
Microwave Ovens,Electric Heater,Soybean Milk Machine
VALTOO,Hair Drier,Fireplace,Clothes Dryer
Projector,Shredder,Electric Kettle
Sealing Machine,Toaster,Coffee Machine
Decocing Pot,Water Dispencer

Cap/Case material,Bracket type/Terminal Orientation/Terminal Size could be customized based on actual demand. See the bottom for details.



Type: Single pole - single throw

T23 series thermoistat Height: 9.6mm(T24 series is 9.6mm)



Operating temp:
UL/CUL: 50℃~205℃
SEMKO: 50℃~220℃
CQC: 50℃~180℃



CAP/Bracket Material: Aluminum/Stainless steel/Copper



Terminal Orientation: 0°/30°/45°/60°/90°



Terminal Size: 4.75mm(0.187inch)/6.35mm(0.25inch)



Case Material: PPS(P)



Electrical Rating:
16A/250V AC Resistive load
15A/125V AC Resistive load
10A/250V AC Resistive load

Temp Tolerance: ±3℃ or more, Standard: ±3℃ ~ ±12℃(depend on customer required operating Temp)



Endurance: 100,000 cycles or more



Circuit Resistance: 50mΩ or less



Insulation Resistance: 100MΩ or more(DC 500V)

Dielectric Strength: AC 1,450V for 1 min.



Current bracket/Terminal types and case material options are as below. We would like to cooperate customer for new design.
