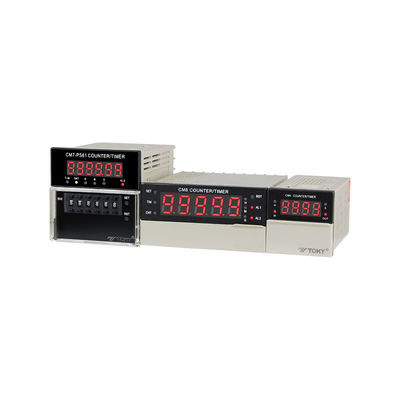

CM Multifuction Electrical Counter Meter power fail memory 2loop Input & 2loop Output Channel

CM Multifuction Electrical Counter Meter power fail memory 2loop Input & 2loop Output Channel
CM Multifuction Electrical Counter Meter power fail memory 2loop Input & 2loop Output Channel

Large Image :  CM Multifuction Electrical Counter Meter power fail memory 2loop Input & 2loop Output Channel

Product Details:
Place of Origin: China
Brand Name: Toky
Certification: CE
Model Number: CM series
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Carton
Delivery Time: 14days
Payment Terms: T/T

CM Multifuction Electrical Counter Meter power fail memory 2loop Input & 2loop Output Channel

Description
Power Supply Voltage: AC/DC 85~265V 50/60Hz Power Consumption: ≤5W
Data Reserve: 10years Working Environment: 0~50℃ (no Condensation)
Display Range: -199999~999999(6digits);-19999~99999(5digits);-1999~9999(4digits) Timing Range: 0.01S~9999.99H(6digits) 0.01S~9999.9H(5digits)0.01S~999.9H(4digit)
Timing Accuracy: 0.2%FS Sampling Rate: ≤10Kcps
High Light:

2loop Output Electrical Counter Meter

,

2loop Input Electrical Counter Meter

,

Multifunction Electrical Counter Meter

CM multifuction digital count meter/timer, 2loop input & 2loop output channel, power fail memory/timing pausing function



1. Features and advantages:

a). Dial switch setting, visual and easy to operate.
b). CP1/CP2 2 inputs,various input type:A/B/C/D
c). Max 2 output channels(relay or NPN open collector) AL1/AL2
d). 12 output modes:F/N/R/C/L1/K2P/Q/A/D/H/L
e). Power fail memory/timing pausing function.
f). Counting/timing functions switchable by software.
g). 8 timing modes, optional decimal or sexagesimal.



2. Model specification:
CM Multifuction Electrical Counter Meter power fail memory 2loop Input & 2loop Output Channel 0
3. Technical parameter:

Power supply Linear Power supply AC220V±10
Switch power supply:AC/DC 85~265V 50/60Hz
Total consumption ≤5W
Trigger edge Rising edge, falling edge
Data reserve 10years
Input signal type Square wave, sine wave
Input signal level High level:3~30VDC
Low level:0~2VDC
Counting speed ≤5Kcps
Working environment 0~50℃
Anti-interference Power:2000Vp-p; I/O port:500Vp-p
Counting range -199999~999999(6digits);-19999~99999(5digits);-1999~9999(4digits)
Counting output mode F,N,C,R,K,P,Q,A(increasing or decreasing counting)
Input impedance 6KΩ
Relay contact capacity AC 250V 3A(resistance loading)
Insulation impedance ≥20MΩ
Dielectric strength 1500VAC
Timing accuracy 0.2%FS
Timing range 0.01S~9999.99H(6digits) 0.01S~9999.9H(5digits)0.01S~999.9H(4digit)
Dimension(mm) 72H*72W*100L(CM7)


4. Appearance and installation dimensions:

CM Multifuction Electrical Counter Meter power fail memory 2loop Input & 2loop Output Channel 1

5. Connections:
CM Multifuction Electrical Counter Meter power fail memory 2loop Input & 2loop Output Channel 2
