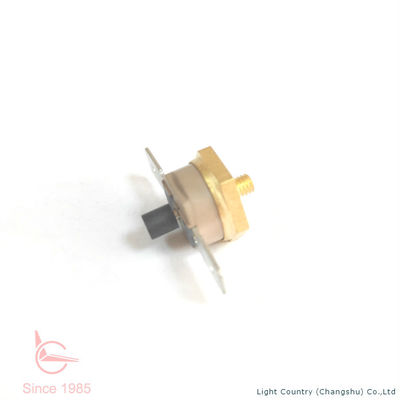

T23 Manual Reset Temperature Switch With Hexagonal Copper Head

T23 Manual Reset Temperature Switch With Hexagonal Copper Head
T23 Manual Reset Temperature Switch With Hexagonal Copper Head T23 Manual Reset Temperature Switch With Hexagonal Copper Head

Large Image :  T23 Manual Reset Temperature Switch With Hexagonal Copper Head

Product Details:
Place of Origin: China
Brand Name: LC
Certification: UL, CUL, VDE, ENEC
Model Number: T23
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Depend on demand quantity and spec
Packaging Details: 1000pcs for one carton
Delivery Time: 20~30 days
Payment Terms: T/T
Supply Ability: more than 50K daily

T23 Manual Reset Temperature Switch With Hexagonal Copper Head

Description
Factory: Light Country(Changshu) Co., Ltd. Product Name: Manual Reset Temperature Switch
Working Temperature: 0℃~180℃ Differential: 10K~30K(15K Is The Standard)
Type: Single Pole - Single Throw Operating Life: 1000 Cycles
High Light:

Hexagonal Manual Reset Thermostat

,

Manual Reset Thermostat

,

Copper Head Manual Reset Thermostat

Good Quality T23 Manual Reset Temperature Switch With Hexagonal Copper Head For Dry Burning-Resistant Protection

Manual reset temperature switch is one of a thermal controller. As the working ambient temperature changes to the required action temperature, physical deformation and some other special effects happen inside the switch automatically, to turn off the circuit, to protect the whole machine unit and operators. It need to be reset manually.



1. Why choose Manual Reset Temperature Switch?

  1) High sensitivity, rapid heat transmission, for excellent temperature control.

  2) Easy mounting.

  3) Many choices for temperature switch components, always support customized production.

  4) All finish goods will be tested before shipping, high pass rate.



2. Parameters.

  Factory   Light Country(Changshu) Co., Ltd.
  Product   Manual Reset Temperature switch
  Type   Single pole, single throw
  Height   9.6mm
  Cap material   Hexagonal screw copper head
  Screw spec   M4*0.7*6
  Case material   PPS
  Terminal material   Copper with tin plated
  Terminal size   4.75mm
  Terminal orientation   0°
  Electrical Rating   16A 250V AC, 10A 250V AC, 15A 125VAC
  Action temperature   0℃~180℃
  Differential   8K~30K, 15K is the standard
  Temp Tolerance

  Operating Temp. ±3

  Returning Temp. ±4

  Circuit Resistant   Less than 50mΩ
  Insulation Resistance   100MΩ min. at DC 500V
  Dielectric Strength   AC 1250V for one minute
  Operating Life   100,000 cycles.
  Function   For dry burnning resistant protection



3. Attentions about Manual Reset Temperature Switch installation.

1) During installation, need high attention that the temperature-sensitive surface should not be deformed, and the top of the cap should not be collapsed or deformed, so as not to affect the temperature performance and electrical performance of the product.



2) Manual resest temperature switch shall be installed with cap connected with the grounding metal parts or the power grounding wire of the equipment to reduce the electromagnetic radiation and interference signals of the complete machine.



3) Manual reset series temperature switch can only be reset after the temperature drops at least 20℃; And when reset, the force should be moderate, to just can make the thermostat reset as appropriate (about 5~6N), otherwise there is an impact on the temperature.



4. If the picture product could not meed your demand, please refer to below KSD301 Thermostat Specification for some common components for best price support. Kindly share your specification details such as action/reset temperature, bracket, terminal types... with us. We will support customized production.



T23 Manual Reset Temperature Switch With Hexagonal Copper Head 0

T23 Manual Reset Temperature Switch With Hexagonal Copper Head 1





5. About us.

Light Country was founded in 1985 in Taiwan.

We dedicate on temperature switch and rocker switch.

These parts are widely used in household appliance, motor vehicles, industrial facilities, medical devices, etc.

To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.

Our factory already got ISO9001, ISO14001, IATF16949 certificates.

Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.

We promise high quality products, timely delivery, attentive service, effective improvements.

We deserve your trust.
