Product Details:
|
| Product Name: | KSD301 Thermostat | Operating Temperature: | 0℃~250℃ |
|---|---|---|---|
| Differential: | 8℃ Or More | Electrical Rating: | 10A/250V AC |
| Case Material: | Phenolic/PPS/Ceramic | Terminal Orientation: | 0°/30°/45°/60°/90° |
| Dielectric Strength: | AC 1,450V For 1 Min. | Type: | Single Pole - Single Throw |
| Insulation Resistance: | 100MΩ Or More(DC 500V) | Operating Life: | 100,000 Cycles |
| High Light: | ksd301 thermal switch,ksd301 temperature switch |
||

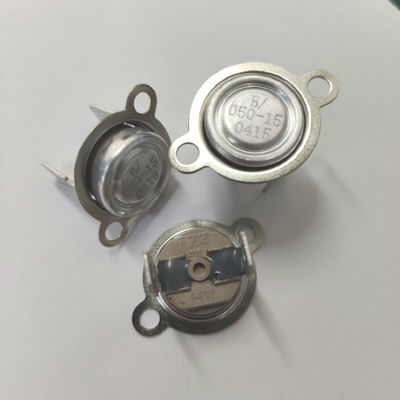

KSD301 Temperature Switch is a small bimetal snap-action thermal protector with shell. Action principle is that the component bimetal disc jump at the change of temperature, the contact point can be closed/opened rapidly to connect/disconnect the circuit.
Cap/Case material, Bracket type/Terminal Orientation/Terminal Size could be customized based on actual demand.
Application: Air conditioner, Refrigerator, Water Heater, Microwave Ovens, Electric Heater, Soybean Milk Machine, VALTOO, Hair Drier, Fireplace, Clothes Dryer Projector, Shredder, Electric Kettle Sealing Machine, Toaster, Coffee Machine, Decocing Pot, Water Dispencer...
| Type | Single pole, single throw |
| T24 KSD301 Temperature switch height | 12.4mm |
| Case material | PPS |
| CAP material | Aluminum |
| Bracket material | Stainless steel |
| Terminal material | Copper |
| Terminal orientation | 90° |
| Terminal size | 4.75mm(0.187inch)/6.35mm(0.25inch) |
| Operating temperature | 0℃~250℃ |
| Differential | 8℃ or more(depend on customer's demand) |
| Electrical rating | 16A/250V, 15A 125V, 10A/250V |
| Endurance | 100,000 cycles or more |
| Circuit Resistance | 50mΩ or less |
When using temperature switch, recommend to choose following wires considering rated current,
| Rated current | ≤3A | ≤5A | ≤7A | ≤12A |
| Traverse area | 0.3㎡ | 0.5㎡ | 0.75㎡ | 1.25㎡ |
| UL wire gauge | AWG22 | AWG20 | AWG18 | AWG16 |
| Rated current | ≤15A | ≤20A | ≤30A | -- |
| Traverse area | 2.0 | 3.5 | 5.5 | -- |
| UL wire gauge | AWG14 | AWG12 | AWG10 | -- |
Current bracket/Terminal types and case material options are as below. We would like to cooperate customer for new design.
Attentions about thermostat installation:
1. During thermostat using process, need to avoid moisture and pollution, otherwise it will affect the electrical performance of the product. Recommended thermostat working environment is that relative humidity ≤90%, no contact with corrosive and flammable things.
2. During installation, need high attention that the temperature-sensitive surface should not be deformed, and the top of the cap should not be collapsed or deformed, so as not to affect the temperature performance and electrical performance of the product.
3. During installation, need to make sure the thermostat’s temperature-sensing surface to be evenly contacted with the temperature-controlling part, and the force should be evenly applied to stabilize the temperature-sensing. Besides, need to coat the surface of temperature-sensitive with thermal grease or other similar heat-conducting medium.
4. During installation, the terminals should not be bent vigorously, and the connections between terminal and wire should be in good contact, otherwise the electrical contact reliability will be affected.
