Product Details:
|
| Product: | Manual Reset Bimetal Thermostat | Electrical Rating: | 16A 250V, 15A 125V, 10A 250V |
|---|---|---|---|
| Temperature Range: | 0~180℃ | Tolerance: | ±3℃ |
| Lifetime: | ≥100,000 Times | Circuit Resistance: | ≤50mΩ |
| Bracket Type: | Fixed Bracket | Terminal Angle: | 90℃ |
| Application: | Industrial, Household, Office, Electrical, Communication | Warranty: | 1year |
| High Light: | PPS Case Bracket KSD301 Thermal Switch,KSD301 Temperature Switch 16A 250V,Industrial Manual Reset Thermostat KSD301 Switch |
||

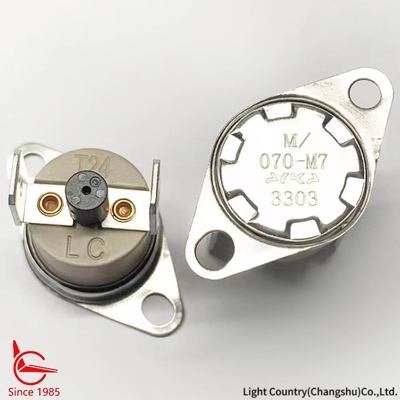

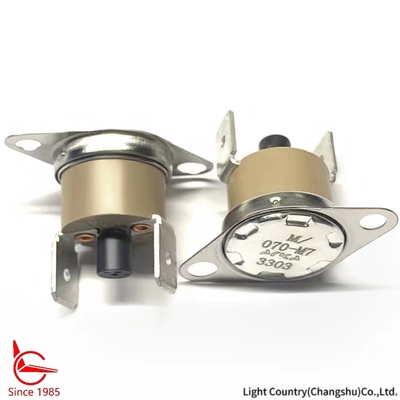

Light Country Ksd301 Thermo Switch 16A 250V Industrial Manual Reset Thermostat With PPS Case Fixed Bracket
1. Company profile:
Light Country was founded in 1985 in Taiwan. We dedicate on bimetal thermal switch and rocker switch for 38 years.
We’re with integration of R&D, production, sales and post-sales as well, to provide fast respond service and best price.
We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.
Our switches are widely used in household appliance, office equipment, beauty industry, medical devices, industial, and so on.
2. Advantages of our Bimetal Thermal Switch:
1) Easy mounting.
2) High precision, excellent temperature control.
3) Wide operating temperature range.
4) Flexible design, can be customized according to customer's requirements.
3. Parameters and specification:
| Factory name | Light Country(Changshu)Co.,Ltd. |
| Product | Mamual Reset Bimetal thermostat |
| Model | T24 |
| Type | Manual Reset |
| Electrical rating | 16A/250V, 15A/125V, 10A/250V |
| Temperature range | 0℃~180℃ |
| Differential | 8℃ or more, depend on customer's demand. |
| Cap material | Stainless steel |
| Terminal material | Brass with tin plated |
| Terminal angle | 90℃ |
| Case material | PPS |
| Bracket type | Fixed type |
| Circuit Resistance | ≤50mΩ |
| Insulation Resistance | 100MΩ min. at DC 500V |
| Dielectric Strength | AC 1450V/minute |
| Operating Life | ＞100,000 cycles |
| Product Certification | UL, CUL, CE, CQC, VDE |
| Factory Certification | ISO9001, ISO14001, IATF16949 |
4. Applications of manual reset thermal switch:
Manual reset thermal switches are usually used in the case of safety protection that do not need frequently operation, for example,in the overheating protection in electrial motors, industrial equipments and so on. When the thermal switch cuts off, need manual intervention to check and reset.
Electrical motors: In electrical motors, ksd301 thermostat can help to prevent overheating by cutting off the power supply when the temperature exceeds the setting nummer.
Industrial equipment: KSD301 thermal switches are also widely used in various industrial processes and systems to protect the equipments and machines, and ensure safe operating.
5. Terms:
1) Payment:
Please arrange payment simultaneously after placing the order. We will arrange production once we receive the payment because most of our products are customized and can't be put into production in advance.
2) Lead time:
For small lot samples: 7 days
For large order: 10~20days with forecast
20~30 days without forecast.
3) Delivery term:
EXW is preferred, but we can also support FOB, CIF, DDP according to customer's request.
