Product Details:
|
| Factory: | Light Country(Changshu) Co.,LTD | Product Name: | R5 Rocker Switch |
|---|---|---|---|
| Panel Size: | 32*25mm | Mechanical Life Endurance: | ＞30,000 Cycles |
| High Light: | PC Housing Red Light Toggle Switch,R5 Red Light Rocker Switch,Red Light Rocker Switch 32*25mm |
||

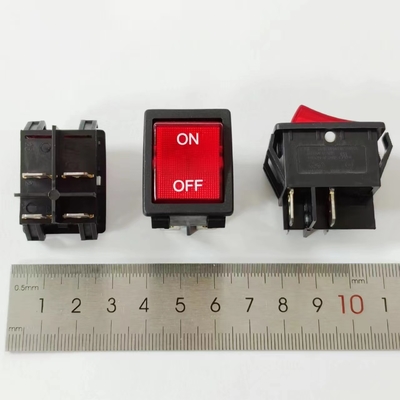

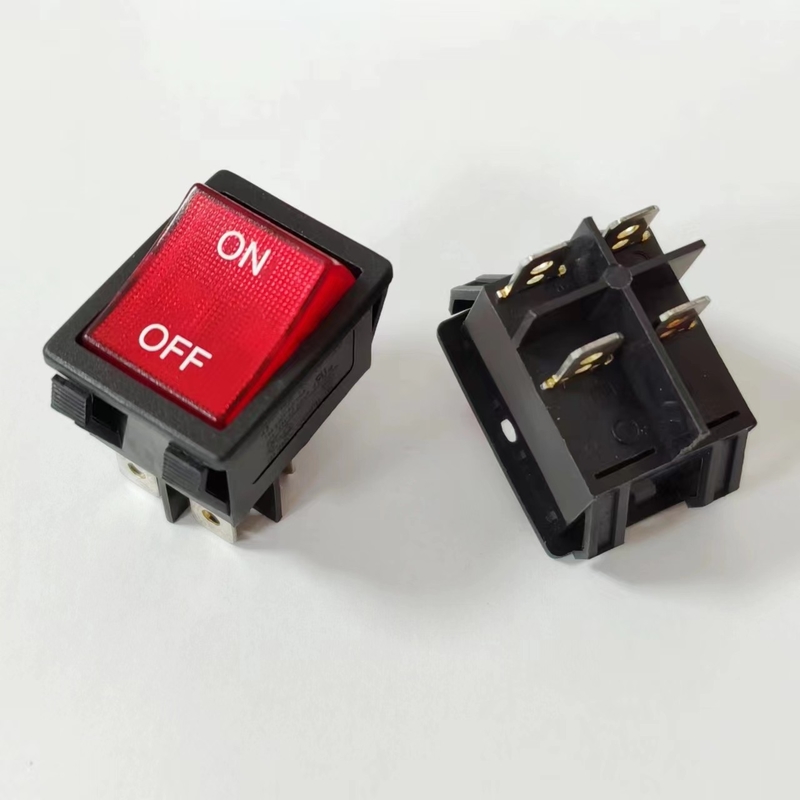

Taiwan Factory R5 Red Light Rocker Switch, 32*25mm, 25A 250V, ON-OFF.
1. About switch factory Light Country.
Light Country was founded in 1985 in Taiwan.
We have been dedicating on rocker switch and thermal switch for more than 35 years.
These parts are widely used in electronic devices, vehicles, and industrial machinery, etc.
We always willing to support customized demand, always prioritize product quality, to enhance customer's brand power.
To provide customer best service, we’re with integration of design, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive service, effective improvements.
2. R5 light rocker switch specification.
| Manufacturer | Light Country(Changshu) Co.,LTD |
| Model | R5 illuminated Rocker Switch |
| Electrical rating | 25A 250V AC |
| Panel cut-out | 32*25mm |
| Mounting hole Size | 30*22mm |
| Mechanical life endurance | ＞30,000 cycles |
| Electrical life endurance | ＞10,000 cycles |
| Safely approval | UL, CUL, VDE, ENEC, CQC |
| Lamp color | Red, contact us for more options |
| Lamp voltage | 3V, 4V, 6V, 12V, 24V, 36V, 48V, 72V, 125V, 250V are available. |
| Housing Material | PA66/PC |
| Contacts Material | Silver alloy |
| Terminal Material | Brass with silver plated |
| Contract resistance | <20mΩ |
| Insulation resistance | >1000MΩ |
| Ambient temperature | T85/T105 |
| Fire rating | UL 94V-2. UL 94V-0. |
| Solder ability of terminal | Max 350℃ 3S, do not apply pressure to the terminal when soldering by hand. |
3. R5 light rocker switch function option.
|
Item No. |
Poles/ Throws |
Rocker position | ||
| Left | Center | Right | ||
| R59 | DPST(with lamp) | ON | None | OFF |
4. R5 light rocker switch dimension.
5. More rocker switch options.
A rocker switch is an electrical switch that rocks back and forth when pressed and released.
The term "rocker" refers to the shape of the switch, which resembles a rocker or seesaw.
A rocker switch can have multiple dimensions, which define its characteristics, such as its size, shape, and electrical specifications.
Please refer to below specification data to find more rocker switch models,
check if anyone could fulfill your demand, we will appreciate if you share your specification or product pictures.
