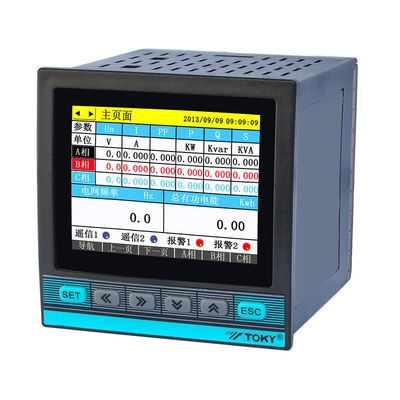

RS485 3 Phase Multifunction Power Recorder 3.5 Inch TFT LCD Display DW9T Series

RS485 3 Phase Multifunction Power Recorder 3.5 Inch TFT LCD Display DW9T Series
RS485 3 Phase Multifunction Power Recorder 3.5 Inch TFT LCD Display DW9T Series

Large Image :  RS485 3 Phase Multifunction Power Recorder 3.5 Inch TFT LCD Display DW9T Series

Product Details:
Place of Origin: China
Brand Name: Toky
Certification: CE
Model Number: DW9T series
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Carton
Delivery Time: 15~35days
Payment Terms: T/T

RS485 3 Phase Multifunction Power Recorder 3.5 Inch TFT LCD Display DW9T Series

Description
Usage: Industrial Power Supply Voltage: 100~240Vac,50/60Hz
Power Consumption: ≤5W Accuracy: 0.5%
Working Environment: -10~50℃ 5~90%RH Analog Output: 4~20mA
Environmental Standard: IEC 60068-2 Safety Standard: IEC 61010-1,UL61010-1
Communication: RS485, Baud Rate: 4.8kbps、9.6kbps、19.2kbps、38.3kbps、115.2kbps
High Light:

RS485 Power Recorder

,

3.5'' TFT LCD Display Power Recorder

,

3 Phase Multifunction Power Meter

DW9T Series high accuracy 3phase multifunction power recorder, 3.5 inch TFT LCD display, RS485, Modbus-RTU protocol

1. Features and advantages:
a). Optional 3 phase voltage/current total harmonic and subharmonic measurement.
b). Optional 8 time frame, 4 kinds statistic rate.
c). Can measure 28 electrical parameters, including voltage/current/active power/reactive power/frequency/power factor, and etc.
d). Measuring frequency range:45~400Hz. High accuracy.
e). RS485 communication(Max 2loop),Modbus RTU and DLT645 procotol.
f). Max 4 loop DI and DO, isolated input/output with remote and telecommand functions.
g). Max optional 3 loop 4 ~ 20mA analog output.

2. Model specification:
RS485 3 Phase Multifunction Power Recorder 3.5 Inch TFT LCD Display DW9T Series 0

3. Technical parameter:

Input signal Input voltage 3*100V/57.7V 3*450V/220V Power consumption per phase<1VA
Voltage impedance ≥300KΩ
Input current 3*5A(1A can be ordered) Power consumption per phase<0.4VA
Current impedance <20mΩ
Rated frequency 50Hz,60Hz
Accuracy Active power:level 0.5S;
Reactive power:level 2;
Voltage & current:0.2%FS
Measurement range Current:0.001In~1.2In
Voltage:0.01~1.1Un
Electrical parameter Relay capacity AC 250V 5A DC 24V 5A(Resistive load)
Analog output DC 4~20mA with load<400Ω
Display device Industrail TFT LCD display
Clock accuracy 0.5S/d
Communiction Communication port RS485 port Modbus RTU protocol or DLT645 protocol
Baud rate 4.8kbps,9.6kbps,19.2kbps,38.3kbps,115.2kbps
EMC ESD level 3,Contact discharge±6000V, air discharge±8000V
Pulse group level 4 ±4000Vp-p
Frequency drop level 3
Lightning surge level 3,line to ground:±4000V;line to line ±2000V
Environment Working environment -10~50℃ 5~90%RH(no condensation)
Storage environment -40~65℃
Shell specification Vibration 10~57Hz(XYZ direction 2G/30min)
Material VO level flame retardant PC+ABS;mirror:PC
Protection level IP65(Front panel)
Power Power voltage AC/DC 100~240V 50/60Hz
Total consumption <5W
Safe Dielectric strength 2000VAC 50Hz
Insolation strength 100MΩ DC 500V
Total weight About 0.6kg


4. Appearance and installation dimensions:
RS485 3 Phase Multifunction Power Recorder 3.5 Inch TFT LCD Display DW9T Series 1

5. Connections:
RS485 3 Phase Multifunction Power Recorder 3.5 Inch TFT LCD Display DW9T Series 2
