Product Details:
|
| Manufacturer: | Light Country(Changshu) Co.,LTD | Product Name: | KSD301 Manual Reset Thermostat |
|---|---|---|---|
| Rated Current: | 10A, 15A, 16A | Voltage: | 125V, 250V |
| Operating Temperature: | 0℃~150℃ | Application: | Home Appliance... |
| Endurance: | 6000 Cycles | Factory Approvals: | ISO9001, ISO14001, IATF16949 |
| High Light: | ISO9001 KSD301 Thermostat,KSD301 Manual Reset Thermostat,PCB KSD301 Thermostat |
||
KSD301 Thermostat is a small bimetal snap-action thermal protector with shell. Action principle is that the component bimetal disc jump at the change of temperature, the contact point would be closed or opened rapidly to connect or disconnect the circuit.
1. KSD301 Manual Reset Thermostat specification.
| Brand | LC |
| Product | KSD301 Thermostat |
| Model | T24 |
| Type | Manual Reset |
| Height | 12.4mm |
| Electrical Rating | 16A/250V |
| Operating Temperature | 0℃~150℃ |
| Endurance | 6000 cycles |

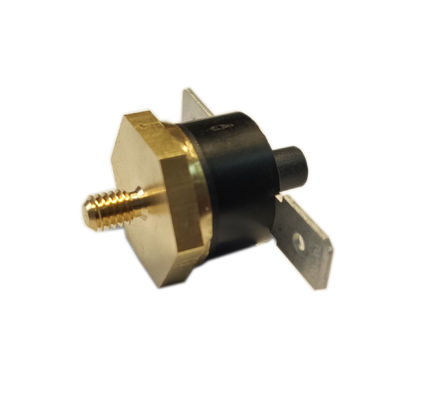

| Cap | Screw M4, M6 Copper head, could choose from below specification, or follow customer's demand. |
| Bracket | H type, R type, could choose from below specification, or customized. |
| Terminal Orientation | 0°, could choose or customized. |
| Case | Phenolic |
| Manufacturer Certificate | ISO9001, ISO14001, IATF16949 |
When using thermostat, recommend to choose following wires considering rated current:
| Rated current | ≤3A | ≤5A | ≤7A | ≤12A |
| Traverse area | 0.3 mm² | 0.5 mm² | 0.75 mm² | 1.25 mm² |
| UL wire gauge | AWG22 | AWG20 | AWG18 | AWG16 |
| Rated current | ≤15A | ≤20A | ≤30A | -- |
| Traverse area | 2.0 | 3.5 | 5.5 | -- |
| UL wire gauge | AWG14 | AWG12 | AWG10 | -- |
2. Common specifications could be chosen. Please refer to below data. Kindly share the detail demand with us. We will support customized production for you.
3. Attentions about KSD301 thermostat installation:
1). During thermostat using process, need to avoid moisture and pollution, otherwise it will affect the electrical performance of the product. Recommended thermostat working environment is that relative humidity ≤90%, no contact with corrosive and flammable things.
2). During installation, need high attention that the temperature-sensitive surface should not be deformed, and the top of the cap should not be collapsed or deformed, so as not to affect the temperature performance and electrical performance of the product.
3). During installation, need to make sure the thermostat’s temperature-sensing surface to be evenly contacted with the temperature-controlling part, and the force should be evenly applied to stabilize the temperature-sensing. Besides, need to coat the surface of temperature-sensitive with thermal grease or other similar heat-conducting medium.
4). During installation, the terminals should not be bent vigorously, and the connections between terminal and wire should be in good contact, otherwise the electrical contact reliability will be affected.
4. Company introduction.
Light Country Co.,Ltd. was founded in 1985 in Taiwan.
We dedicate on KSD301 thermostat and switch.
The main products are KSD301 thermostat, rocker switch, push button switch, water-proof switch, photoelectrical switch, slide switch and rolling-ball vibration switch. These parts are widely used in household appliance, electrical products, office equipment, industrial facilities, medical devices and so on.
The switches could be customized designed based on end-customer's demand.
We've got ISO9001, ISO14001, CQC, UL, CUL, VDE, SEMKO, NEMKO, KC certificate, comply with ROHS and REACH regulations.
We promise reasonable price, stable quality, timely delivery and superior service.
