Product Details:
|
| Operating Temperature: | -25℃~85℃ | Soldering Temperature: | 260℃ Max 5s |
|---|---|---|---|
| Switching Angle: | 12℃ | Product Name: | Photoelectric Light Switch |
| High Light: | outdoor photoelectric switch,photoelectric sensor switch,Switching Angle Photoelectric Light Switch |
||

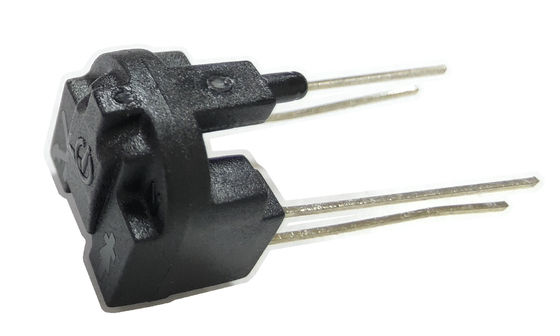

Photoelectric Light Switch Operating Temperature -25℃~85℃ Switching Angle 12℃
Photoelectric switch
Specification(Input Characteristics: TA=25℃).
| Items | ISymbol |
Min. Value |
Standard value |
Max. value |
Unit | Test Condition |
| Forward voltage | VF | - | 1.2 | 1.5 | V | IF=20mA |
| Reverse voltage | VR | - | - | 5 | V | |
| Forward current | IF | 2.5 | 4 | 20 | mA | |
| Reverse current | IR | - | - | 10 | uA | VR=5V |
| Power dissipation | PD | - | - | 75 | mW |
Specification(Output Characteristics: TA=25℃).
| Items | ISymbol |
Min. Value |
Standard value |
Max. value |
Unit | Test Condition |
| Collector-Emitter Voltage | VCEO | - | - | 30 | V | - |
| Emitter-Collector Voltage | VCEO | - | - | 5 | V | - |
|
Collector-Emitter Saturation Voltage |
VCE(SAT) | - | - | 0.4 | V | - |
| Collector Current | IC | - | - | 20 | uA | - |
| Power Dissipation | PD | - | - | 75 | mW | - |
|
Operating Temperature: -25℃~85℃. Soldering Temperature: 260℃ Max 5s. Switching Angle: 12℃. |
||||||
Dimension
